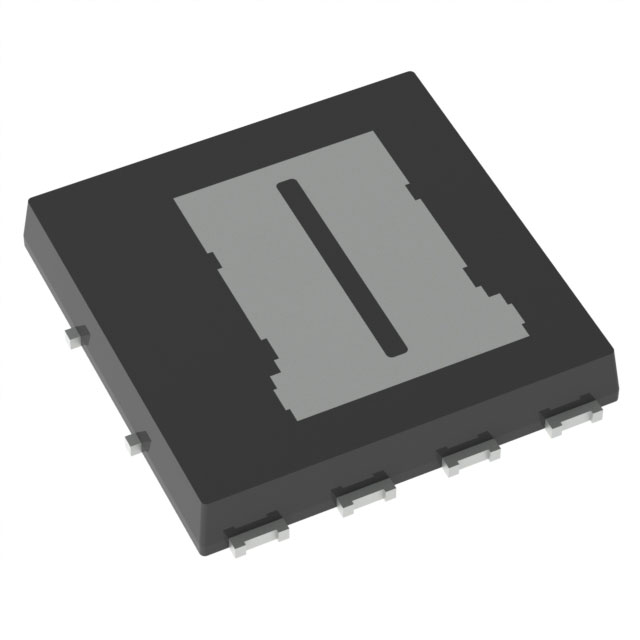

NVMTSC4D3N15MC
PTNG 150V IN CEBU DFNW 8X8 DUALManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 150 V 23A (Ta), 165A (Tc) 5W (Ta), 292W (Tc) Surface Mount, Wettable Flank 8-TDFNW (8.3x8.4)
Additional Information
Series: DUAL COOL®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 23A (Ta), 165A (Tc) |
| Rds On (Max) @ Id, Vgs | 4.45mOhm @ 95A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 5W (Ta), 292W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 521µA |
| Supplier Device Package | 8-TDFNW (8.3x8.4) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 150 V |
| Gate Charge (Qg) (Max) @ Vgs | 79 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6514 pF @ 75 V |
Request a Quote
Clients Also Buy

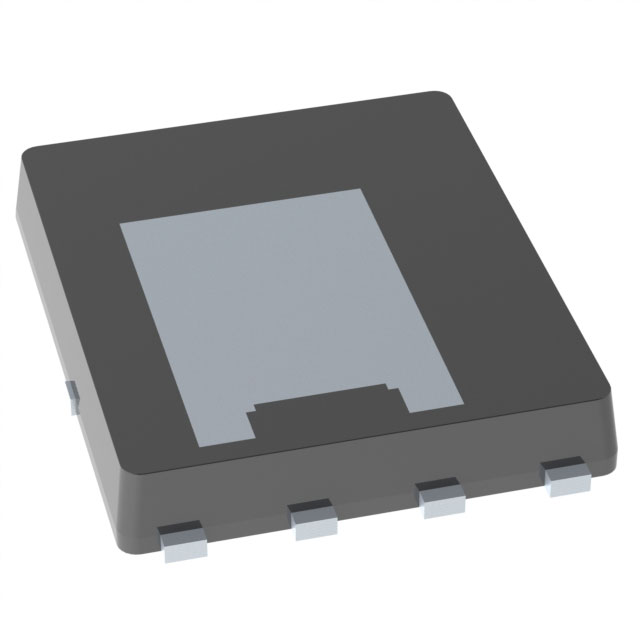

NTMFSC006N12MC
