NVMFWS3D0N08XT1G
T10 80V STD NCH MOSFET SO8FL PREManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More

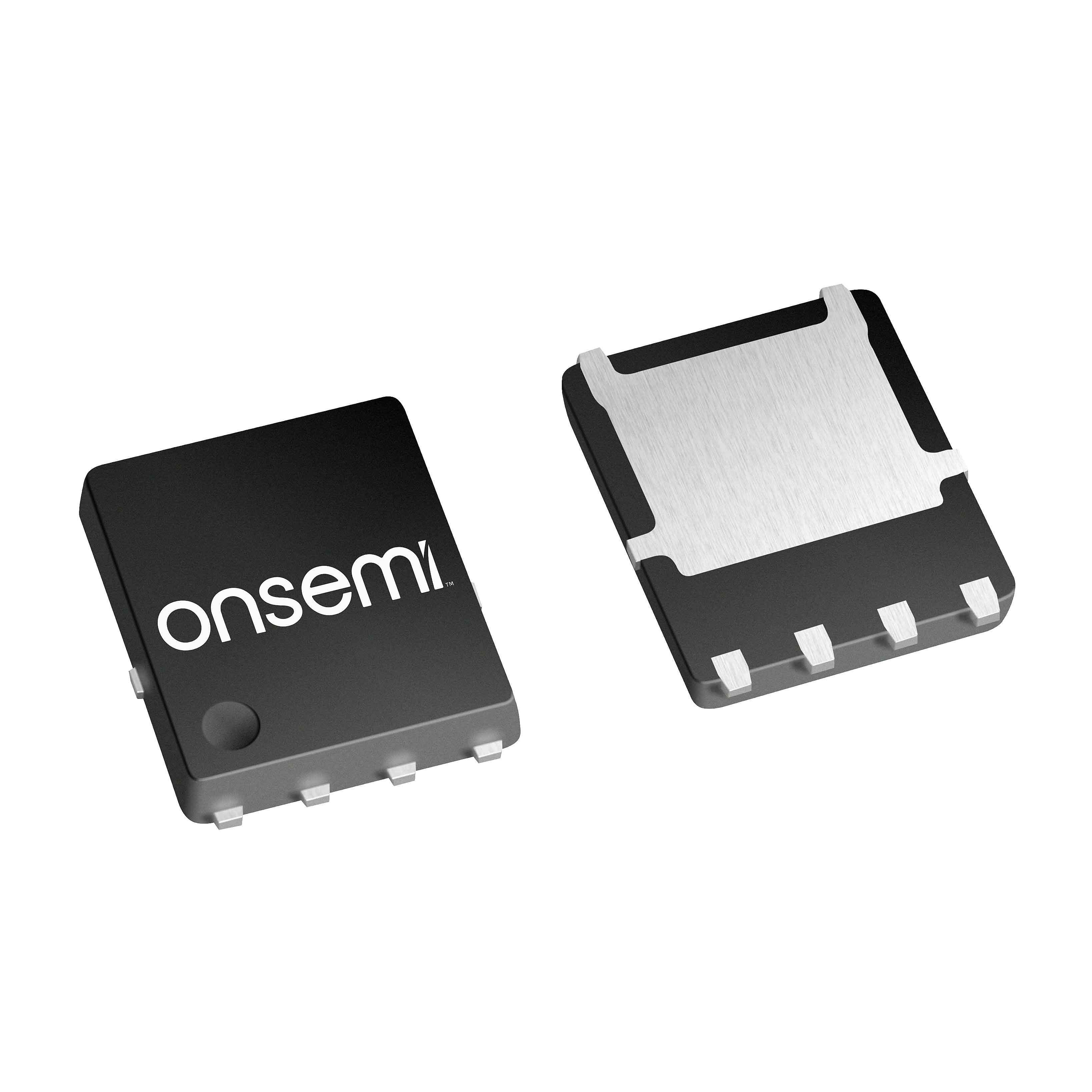

N-Channel 80 V 135A (Tc) 119W (Tc) Surface Mount, Wettable Flank 5-DFNW (4.9x5.9) (8-SOFL-WF)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 8-PowerTDFN, 5 Leads |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 135A (Tc) |
| Rds On (Max) @ Id, Vgs | 3mOhm @ 31A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 119W (Tc) |
| Vgs(th) (Max) @ Id | 3.6V @ 153µA |
| Supplier Device Package | 5-DFNW (4.9x5.9) (8-SOFL-WF) |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 38 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2680 pF @ 40 V |
| Qualification | AEC-Q101 |
