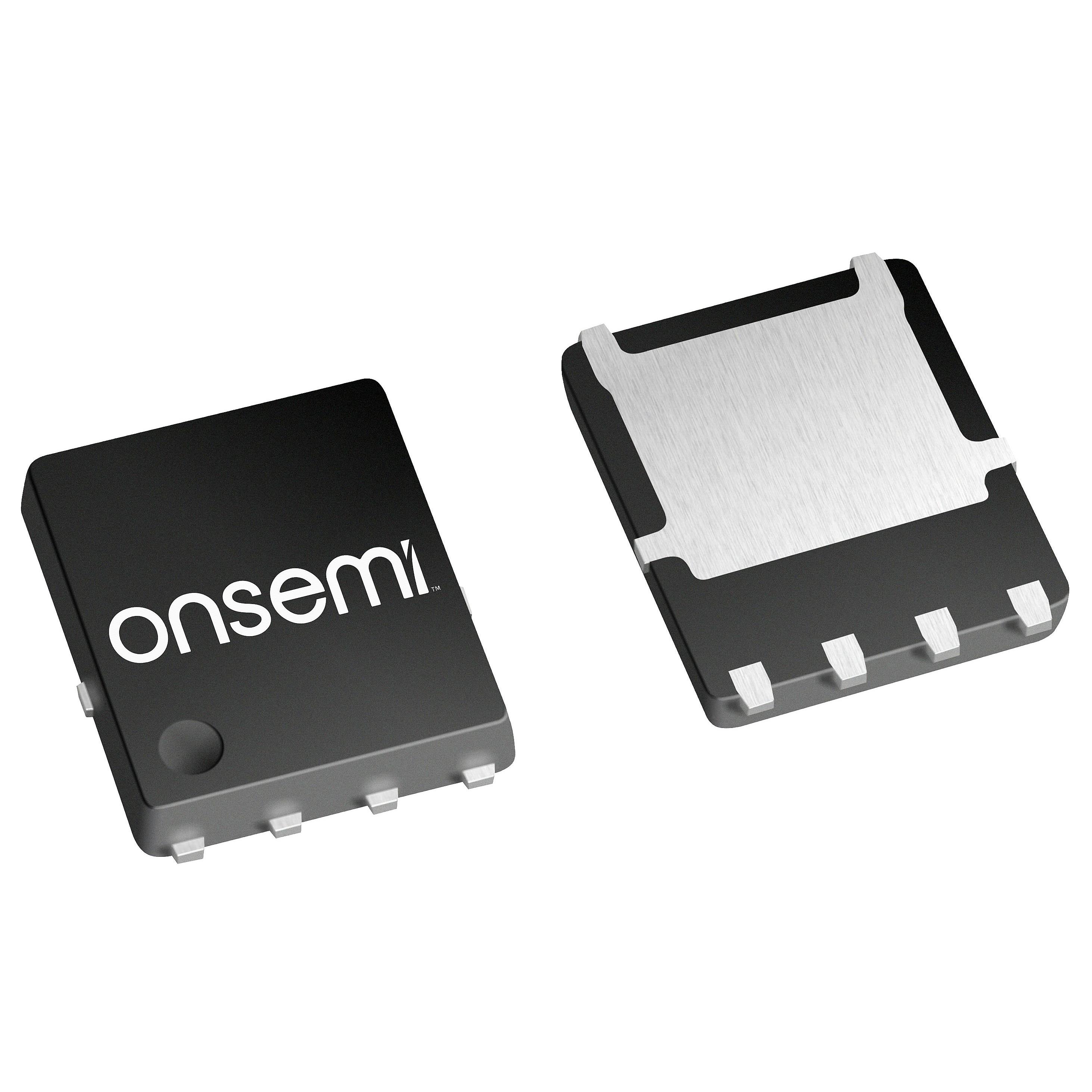

NVMFS6H864NWFT1G
MOSFET N-CH 80V 6.7A/21A 5DFNManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 80 V 6.7A (Ta), 21A (Tc) 3.5W (Ta), 33W (Tc) Surface Mount, Wettable Flank 5-DFNW (4.9x5.9) (8-SOFL-WF)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 37 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN, 5 Leads |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 6.7A (Ta), 21A (Tc) |
| Rds On (Max) @ Id, Vgs | 32mOhm @ 5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3.5W (Ta), 33W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 20µA |
| Supplier Device Package | 5-DFNW (4.9x5.9) (8-SOFL-WF) |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 6.9 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 370 pF @ 40 V |
| Qualification | AEC-Q101 |
