NVMFS5832NLWFT3G
MOSFET N-CH 40V 21A 5DFNManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
onsemi N-Channel MOSFET, part number NVMFS5832NLWFT3G, is a 40V device designed for high-performance applications. This automotive-qualified component features a 21A continuous drain current (Ta) and a low on-resistance of 4.2mOhm at 20A and 10V Vgs. Its 3.7W power dissipation (Ta) and 127W (Tc) capability, coupled with a compact 5-DFN (5x6) (8-SOFL) package, make it suitable for demanding thermal environments. Key parameters include a gate charge of 51 nC (Max) at 10V Vgs and input capacitance of 2700 pF (Max) at 25V Vds. Operating temperature range is -55°C to 175°C (TJ). This MOSFET is ideal for automotive power management and switching solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

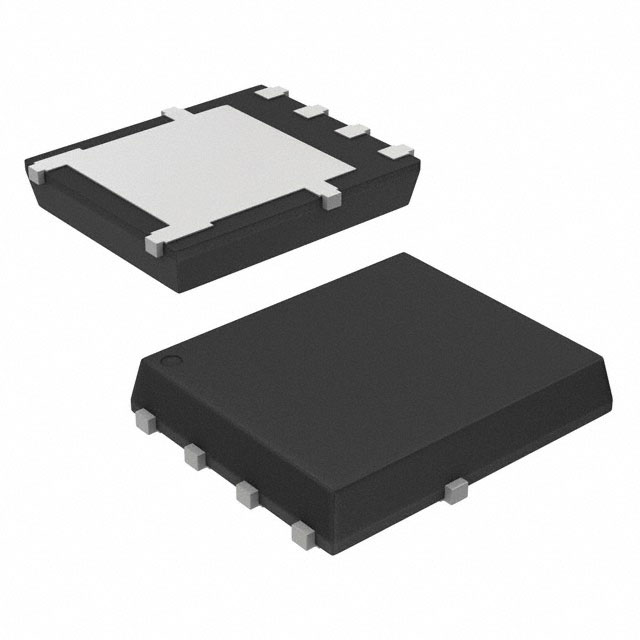

| Package / Case | 8-PowerTDFN, 5 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 21A (Ta) |
| Rds On (Max) @ Id, Vgs | 4.2mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3.7W (Ta), 127W (Tc) |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Supplier Device Package | 5-DFN (5x6) (8-SOFL) |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 51 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2700 pF @ 25 V |
| Qualification | AEC-Q101 |
