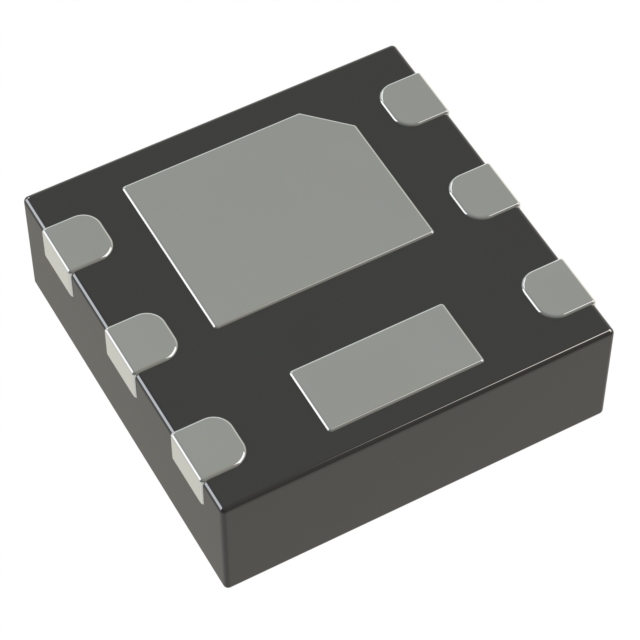

NVLJS053N12MCLTAG
PTNG 120V LL NCH IN UDFN 2.0X2.0Manufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 120 V 4.8A (Ta) 620mW (Ta) Surface Mount 6-UDFN (2x2)
Additional Information
Series: SuperFET® III, FRFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 6-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4.8A (Ta) |
| Rds On (Max) @ Id, Vgs | 53mOhm @ 5.2A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 620mW (Ta) |
| Vgs(th) (Max) @ Id | 3V @ 30µA |
| Supplier Device Package | 6-UDFN (2x2) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 120 V |
| Gate Charge (Qg) (Max) @ Vgs | 7.8 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 520 pF @ 60 V |
