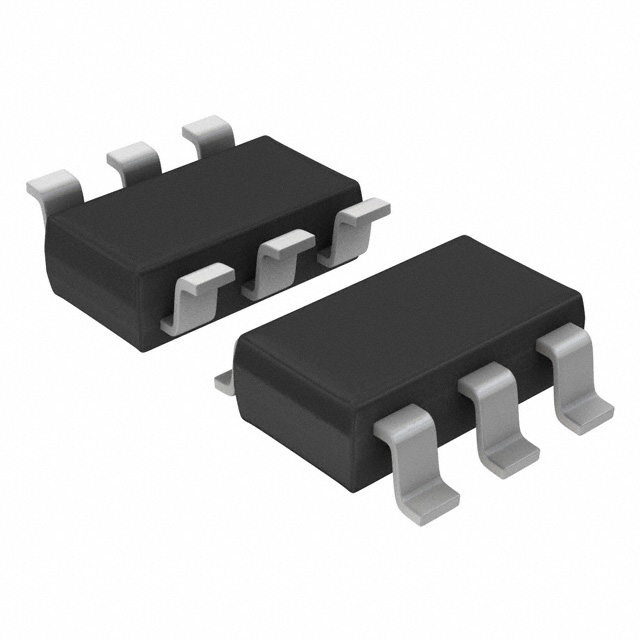

NVGS3130NT1G
MOSFET N-CH 20V 4.2A 6TSOPManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 20 V 4.2A (Ta) 600mW (Ta) Surface Mount 6-TSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4.2A (Ta) |
| Rds On (Max) @ Id, Vgs | 24mOhm @ 5.6A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 600mW (Ta) |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA |
| Supplier Device Package | 6-TSOP |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 20.3 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 935 pF @ 16 V |
| Qualification | AEC-Q101 |
Request a Quote
