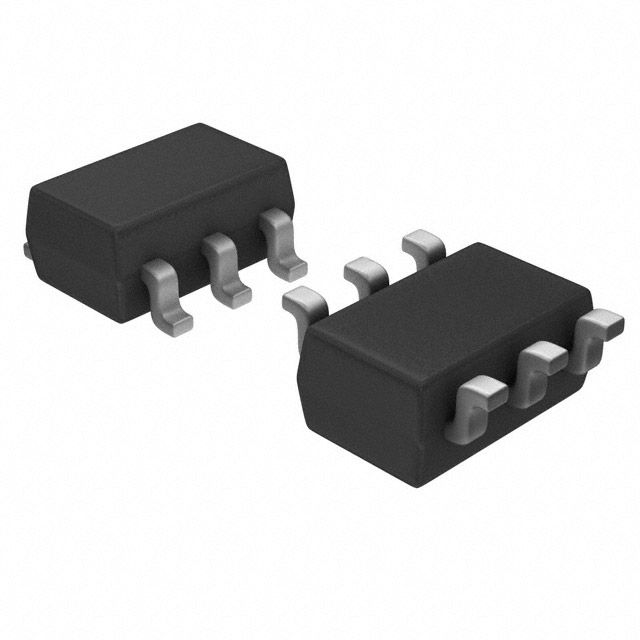

NVC6S5A444NLZT1G
MOSFET N-CH 60V 3.5A 6CPHManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The onsemi NVC6S5A444NLZT1G is an N-Channel MOSFET designed for high-performance applications. This component features a Drain-Source Voltage (Vdss) of 60V and a continuous drain current (Id) of 3.5A at 25°C. With a maximum On-Resistance (Rds On) of 78mOhm at 2A and 10V, it offers efficient power switching. The MOSFET type is Metal Oxide, and it operates within a temperature range of -55°C to 175°C (TJ). Key electrical parameters include a Gate Charge (Qg) of 10 nC at 10V and an Input Capacitance (Ciss) of 505 pF at 20V. The device supports drive voltages from 4.5V to 10V and has a maximum Gate-Source Voltage (Vgs) of ±20V. This AEC-Q101 qualified component is supplied in a 6-CPH package, suitable for surface mount applications. It is commonly utilized in the automotive sector.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 78mOhm @ 2A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 970mW (Ta) |
| Vgs(th) (Max) @ Id | 2.6V @ 1mA |
| Supplier Device Package | 6-CPH |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 505 pF @ 20 V |
| Qualification | AEC-Q101 |
