NVBG089N65S3F
SF3 FRFET AUTO, 89MOHM, D2PAK 7LManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More

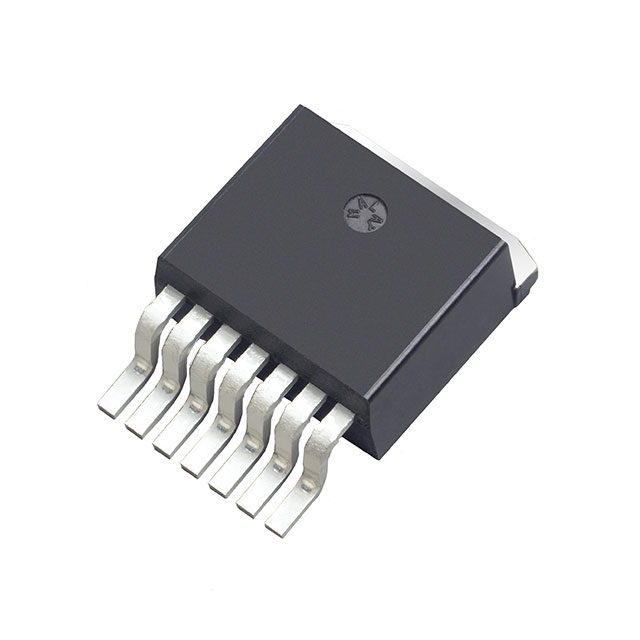

N-Channel 650 V 37A (Tc) 291W (Tc) Surface Mount D2PAK-7
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 43 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 37A (Tc) |
| Rds On (Max) @ Id, Vgs | 89mOhm @ 18.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 291W (Tc) |
| Vgs(th) (Max) @ Id | 5V @ 970µA |
| Supplier Device Package | D2PAK-7 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 74 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3598 pF @ 400 V |
| Qualification | AEC-Q101 |
