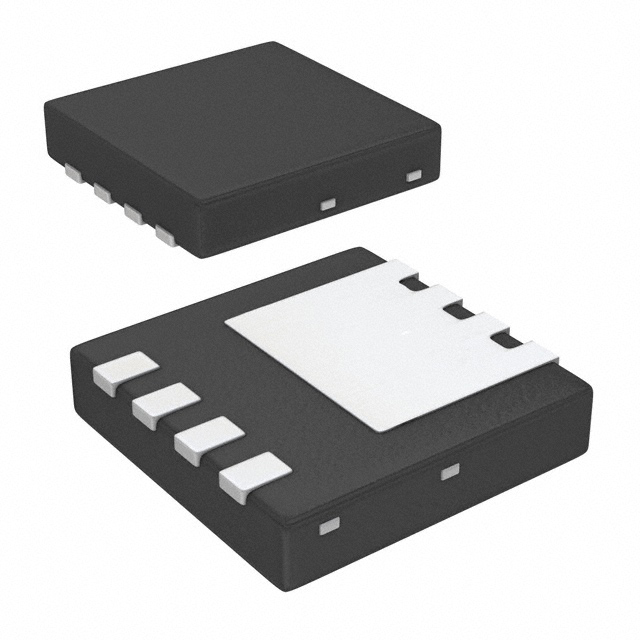

NTTFSS002N04HL
40V T8 IN 3X3 SD PACKAGEManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 23A (Ta), 150A (Tc) 2W (Ta), 84W (Tc) Surface Mount 9-WDFN (3.3x3.3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 9-PowerWDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 23A (Ta), 150A (Tc) |
| Rds On (Max) @ Id, Vgs | 2.1mOhm @ 23A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta), 84W (Tc) |
| Vgs(th) (Max) @ Id | 2V @ 120µA |
| Supplier Device Package | 9-WDFN (3.3x3.3) |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 20.3 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2760 pF @ 20 V |
| Qualification | - |
Request a Quote
