NTTFS002N04CTAG
MOSFET N-CH 40V 27A/136A 8WDFNManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More

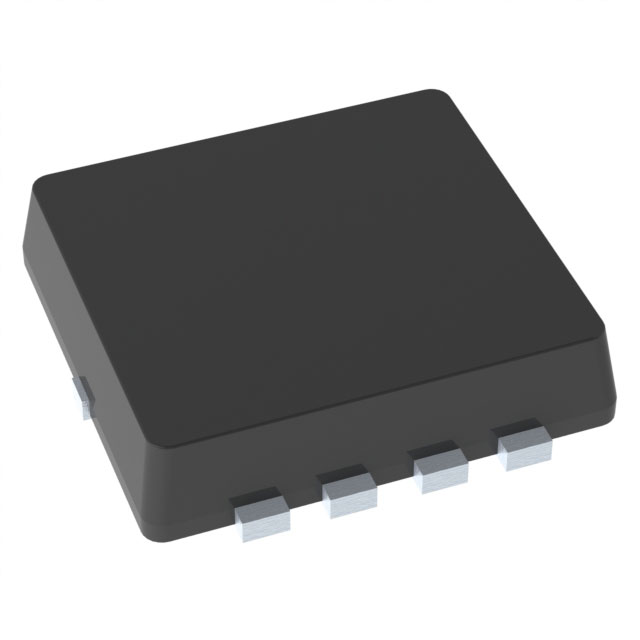

N-Channel 40 V 27A (Ta), 136A (Tc) 3.2W (Ta), 85W (Tc) Surface Mount 8-WDFN (3.3x3.3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 27A (Ta), 136A (Tc) |
| Rds On (Max) @ Id, Vgs | 2.4mOhm @ 50A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3.2W (Ta), 85W (Tc) |
| Vgs(th) (Max) @ Id | 3.5V @ 90µA |
| Supplier Device Package | 8-WDFN (3.3x3.3) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 34 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2250 pF @ 25 V |
