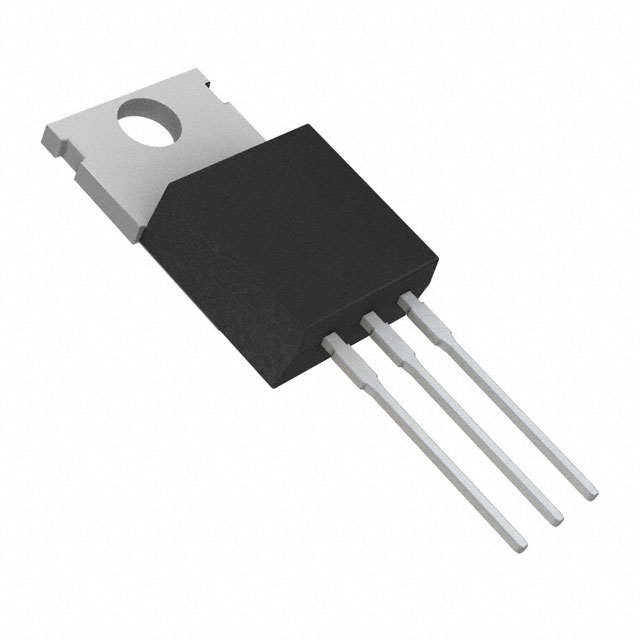

NTP4813NLG
MOSFET N-CH 30V 10.2A TO220ABManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 30 V 10.2A (Ta) 2.4W (Ta), 60W (Tc) Through Hole TO-220-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 10.2A (Ta) |
| Rds On (Max) @ Id, Vgs | 13.1mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.4W (Ta), 60W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | TO-220-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 11.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 895 pF @ 12 V |
Request a Quote
