NTNS3C94NZT5G

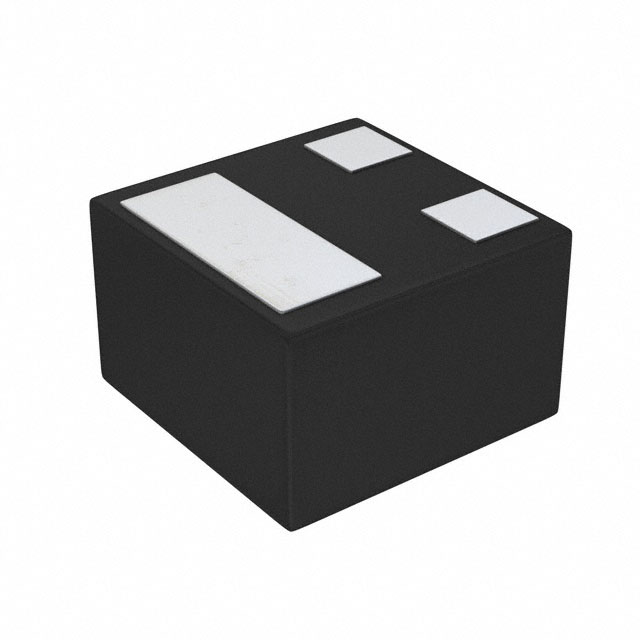

MOSFET N-CHANNEL 12V 384MAManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The onsemi NTNS3C94NZT5G is an N-Channel MOSFET designed for surface mount applications. This component features a Drain-Source Voltage (Vdss) of 12V and supports a continuous drain current (Id) of up to 384mA at 25°C ambient temperature, with a maximum power dissipation of 120mW (Ta). The Rds On is specified at a maximum of 480mOhm at 100mA and 4.5V Vgs. Drive voltages range from 1.5V to 4.5V. Key electrical parameters include a Gate Charge (Qg) of 0.6 nC (max) at 4.5V and an Input Capacitance (Ciss) of 35 pF (max) at 9.6V Vds. The device operates within an extended temperature range of -55°C to 150°C (TJ). It is supplied in a 3-XLLGA (0.62x0.62) package, presented on a tape and reel. This MOSFET is utilized in various industries including consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-XFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 384mA (Ta) |
| Rds On (Max) @ Id, Vgs | 480mOhm @ 100mA, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 120mW (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | 3-XLLGA (0.62x0.62) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 12 V |
| Gate Charge (Qg) (Max) @ Vgs | 0.6 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 35 pF @ 9.6 V |
