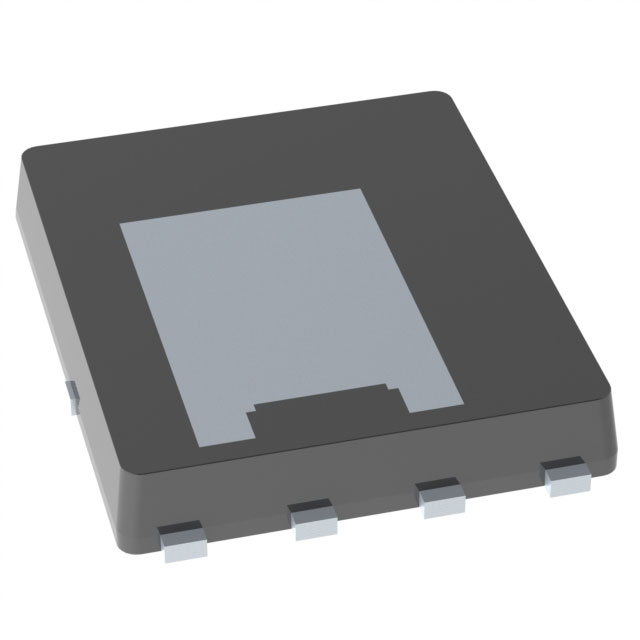

NTMTSC1D5N08MC
MOSFET N-CH 80V 33A/287A 8DFNWManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 80 V 33A (Ta), 287A (Tc) 3.3W (Ta), 250W (Tc) Surface Mount, Wettable Flank 8-TDFNW (8.3x8.4)
Additional Information
Series: Dual Cool™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 33A (Ta), 287A (Tc) |
| Rds On (Max) @ Id, Vgs | 1.56mOhm @ 80A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3.3W (Ta), 250W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 650µA |
| Supplier Device Package | 8-TDFNW (8.3x8.4) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 140 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 10400 pF @ 40 V |
Request a Quote
