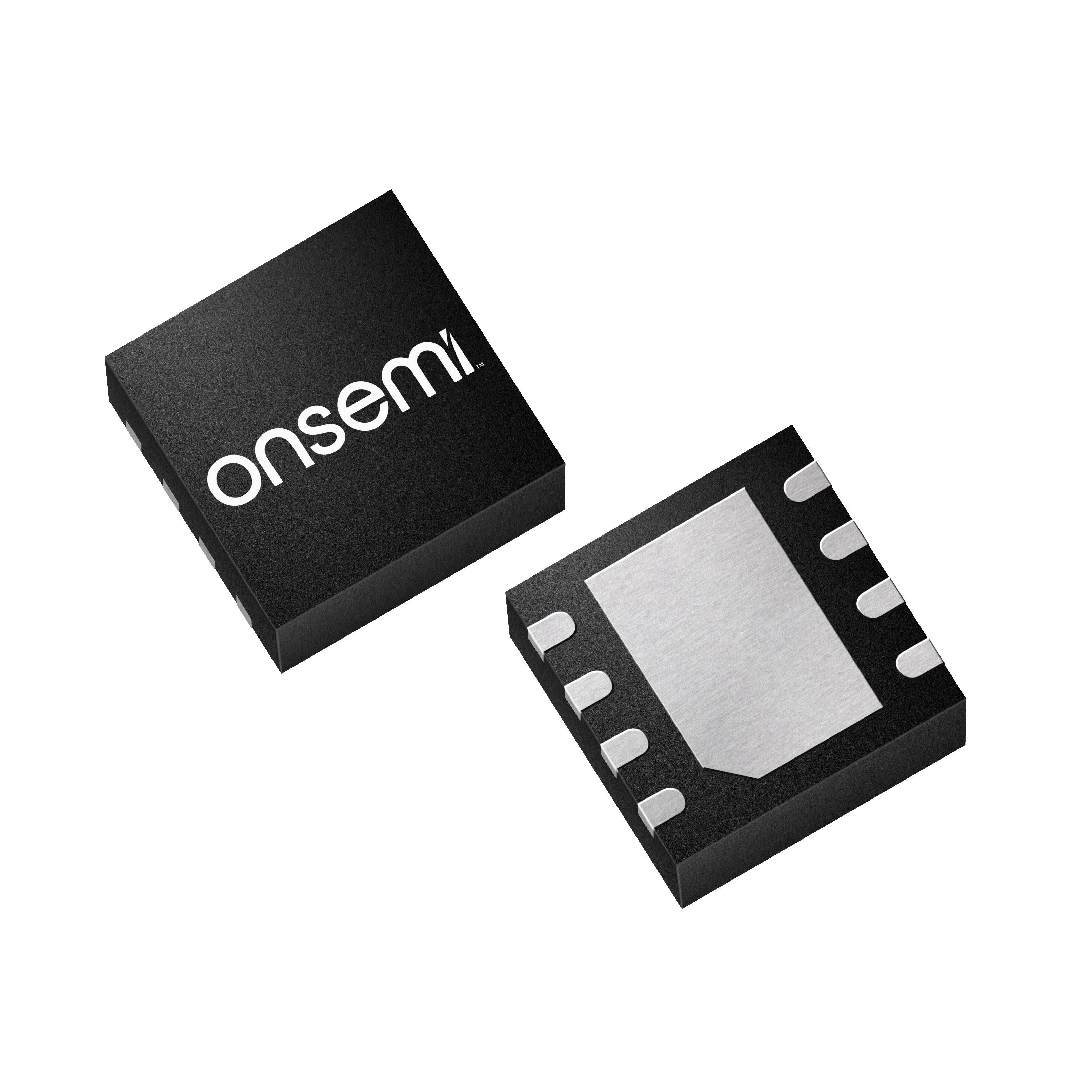

NTMFS4C09NCT1G
NFET SO8FL 30V 52A 5.8MOHManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 30 V 9A (Ta), 52A (Tc) 760mW (Ta), 25.5W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerTDFN, 5 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 9A (Ta), 52A (Tc) |
| Rds On (Max) @ Id, Vgs | 5.8mOhm @ 30A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 760mW (Ta), 25.5W (Tc) |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Supplier Device Package | 5-DFN (5x6) (8-SOFL) |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 10.9 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1252 pF @ 15 V |
| Qualification | - |
Request a Quote
