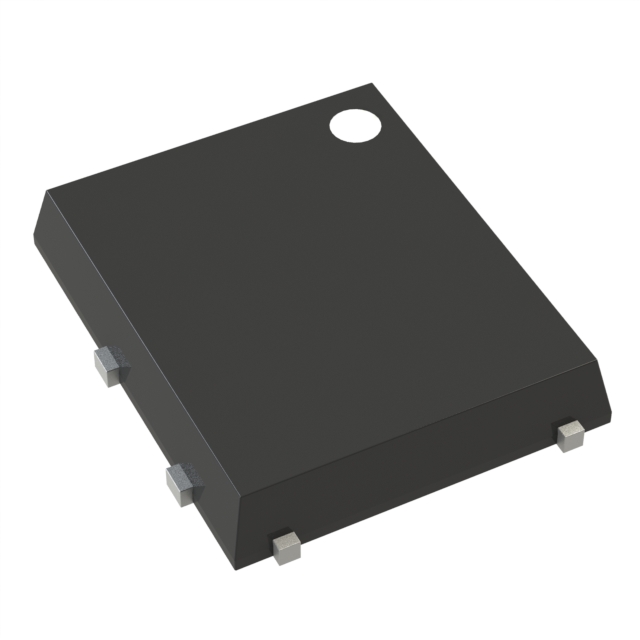

NTMFS0D5N04XMT1G
40V T10M IN S08FL HEFET GEN 2 PAManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 414A (Tc) 163W (Tc) Surface Mount 8-DFN (5x6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 414A (Tc) |
| Rds On (Max) @ Id, Vgs | 0.52mOhm @ 50A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 163W (Tc) |
| Vgs(th) (Max) @ Id | 3.5V @ 240µA |
| Supplier Device Package | 8-DFN (5x6) |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 97.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6267 pF @ 20 V |
| Qualification | - |
