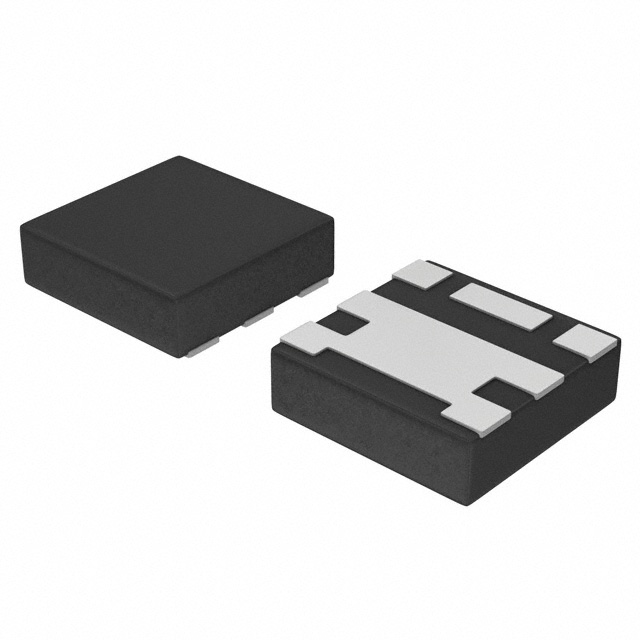

NTLUS3A39PZTAG
MOSFET P-CH 20V 3.4A 6UDFNManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 20 V 3.4A (Ta) 600mW (Ta) Surface Mount 6-UDFN (1.6x1.6)
Additional Information
Series: µCool™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 6-PowerUFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3.4A (Ta) |
| Rds On (Max) @ Id, Vgs | 39mOhm @ 4A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 600mW (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | 6-UDFN (1.6x1.6) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 10.4 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 920 pF @ 15 V |
