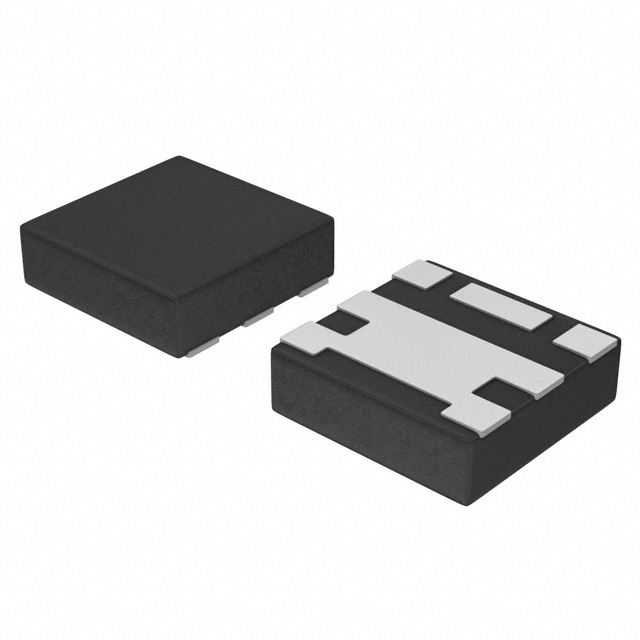

NTLUS030N03CTAG
MOSFET N-CH 30V 4.5A 6UDFNManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 30 V 4.5A (Ta) 640mW (Ta) Surface Mount 6-UDFN (1.6x1.6)
Additional Information
Series: µCool™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-PowerUFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 6A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 640mW (Ta) |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Supplier Device Package | 6-UDFN (1.6x1.6) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 8 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 400 pF @ 15 V |
Request a Quote
Clients Also Buy

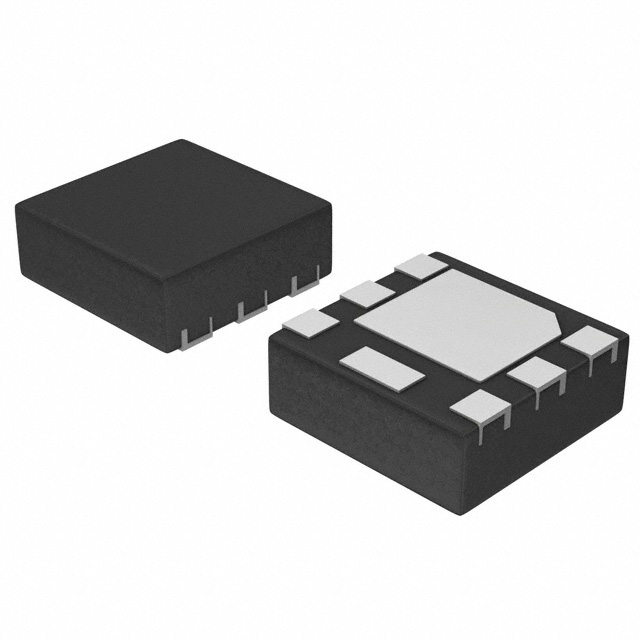

NTLJS4114NT1G
