NTLJS4114NTAG
MOSFET N-CH 30V 3.6A 6WDFNManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More

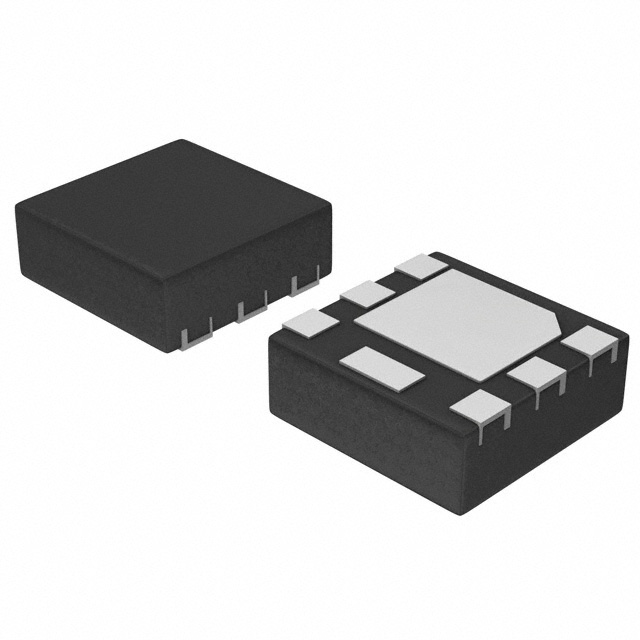

N-Channel 30 V 3.6A (Ta) 700mW (Ta) Surface Mount 6-WDFN (2x2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3.6A (Ta) |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 2A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 700mW (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | 6-WDFN (2x2) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 650 pF @ 15 V |
