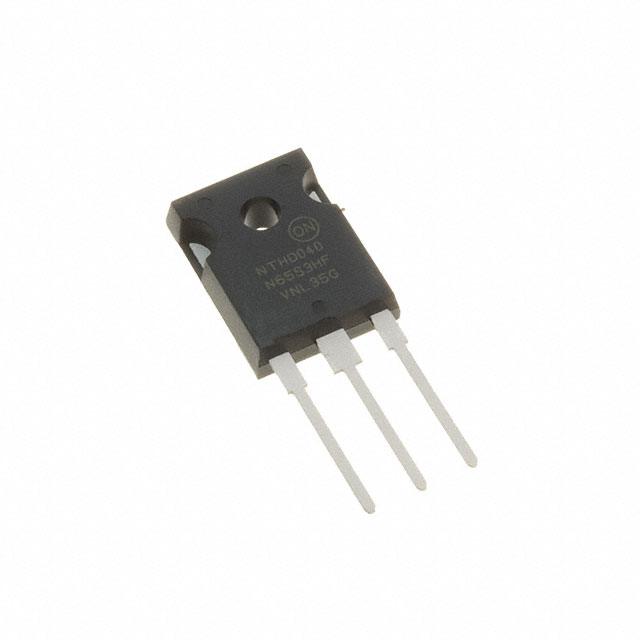

NTHL040N65S3HF
MOSFET N-CH 650V 65A TO247-3Manufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 650 V 65A (Tc) 446W (Tc) Through Hole TO-247-3
Additional Information
Series: FRFET®, SuperFET® IIIRoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 65A (Tc) |
| Rds On (Max) @ Id, Vgs | 40mOhm @ 32.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 446W (Tc) |
| Vgs(th) (Max) @ Id | 5V @ 2.1mA |
| Supplier Device Package | TO-247-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 159 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5945 pF @ 400 V |
Request a Quote
