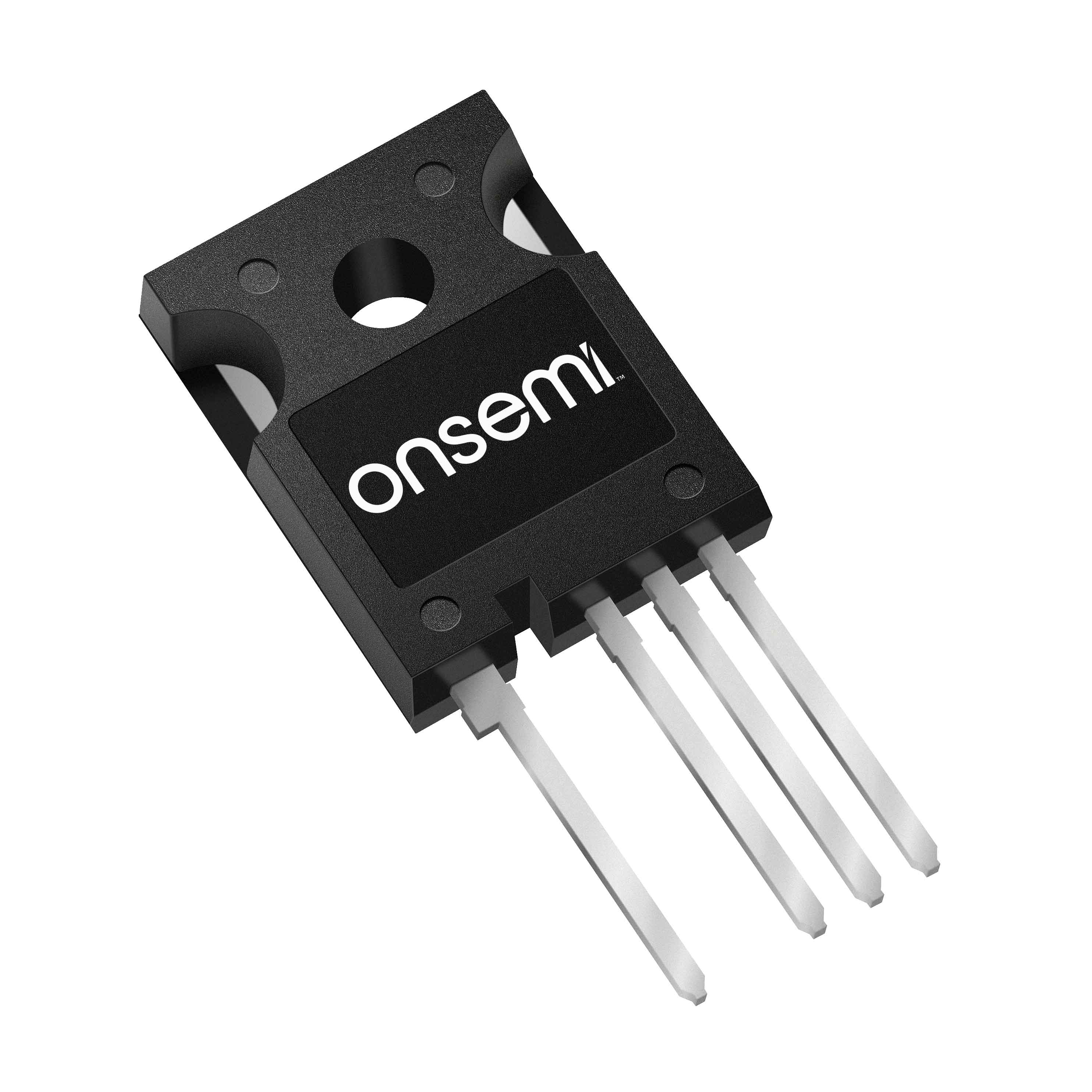

NTH4L023N065M3S
SIC MOS TO247-4L 23MOHM 650V M3SManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 650 V 40A (Tc) 245W (Tc) Through Hole TO-247-4
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 49 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-4 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | SiCFET (Silicon Carbide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 40A (Tc) |
| Rds On (Max) @ Id, Vgs | 33mOhm @ 20A, 18V |
| FET Feature | - |
| Power Dissipation (Max) | 245W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 10mA |
| Supplier Device Package | TO-247-4 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 18V |
| Vgs (Max) | +22V, -8V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 69 nC @ 18 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1952 pF @ 400 V |
| Qualification | - |
