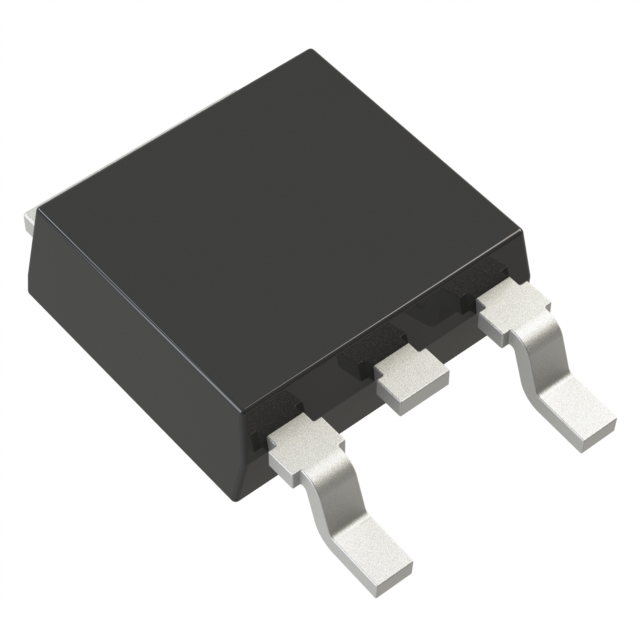

NTD280N60S5Z
SF5 600V EASY ZENER 280MOHM WITHManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 600 V 13A (Tc) 89W (Tc) Surface Mount TO-252 (DPAK)
Additional Information
Series: SuperFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 13A (Tc) |
| Rds On (Max) @ Id, Vgs | 280mOhm @ 5.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 89W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Supplier Device Package | TO-252 (DPAK) |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 17.9 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 978 pF @ 400 V |
| Qualification | - |
