NTBL075N065SC1
M2 650V SIC MOSFET 75MOHM WITH TManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More

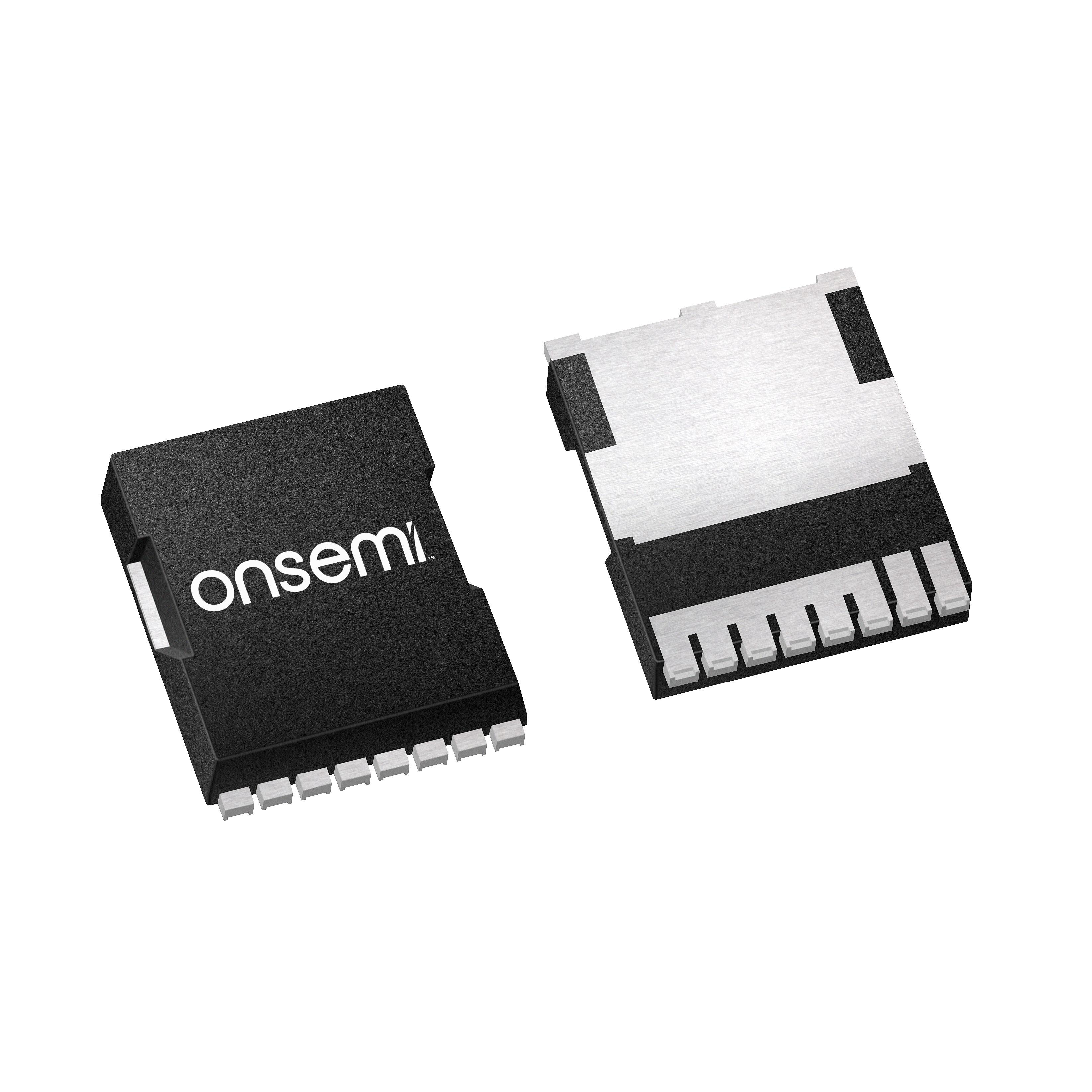

N-Channel 650 V 37A (Tj) 139W (Tj) Surface Mount 8-HPSOF
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerSFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | SiC (Silicon Carbide Junction Transistor) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 37A (Tj) |
| Rds On (Max) @ Id, Vgs | 85mOhm @ 15A, 18V |
| FET Feature | - |
| Power Dissipation (Max) | 139W (Tj) |
| Vgs(th) (Max) @ Id | 4.3V @ 5mA |
| Supplier Device Package | 8-HPSOF |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 18V |
| Vgs (Max) | +22V, -8V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 59 nC @ 18 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1191 pF @ 325 V |
| Qualification | - |
