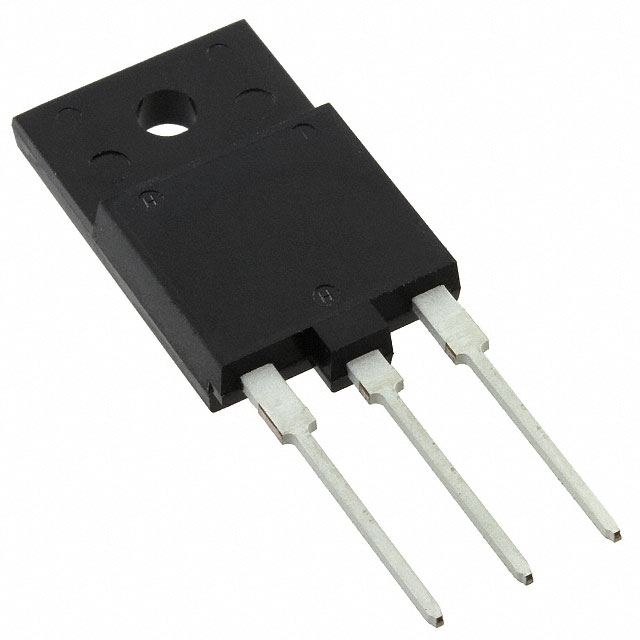

NDUL03N150CG
MOSFET N-CH 1500V 2.5A TO3PManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The onsemi NDUL03N150CG is an N-Channel Power MOSFET designed for high-voltage applications. It features a Drain-Source Voltage (Vdss) of 1500V and a continuous Drain Current (Id) of 2.5A at 25°C (Ta). With a maximum On-Resistance (Rds On) of 10.5 Ohms at 1.25A and 10V Vgs, this component offers efficient switching. The gate charge (Qg) is specified at 34 nC maximum at 10V, and the input capacitance (Ciss) is 650 pF maximum at 30V. The device supports a gate-source voltage range of ±30V and operates at junction temperatures up to 150°C. Power dissipation is rated at 3W (Ta) and 50W (Tc). Packaged in a TO-3P(L) through-hole configuration, this MOSFET is suitable for power conversion and high-voltage switching circuits across various industries including industrial and automotive.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-3PL |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 10.5Ohm @ 1.25A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3W (Ta), 50W (Tc) |
| Vgs(th) (Max) @ Id | - |
| Supplier Device Package | TO-3P(L) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 1500 V |
| Gate Charge (Qg) (Max) @ Vgs | 34 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 650 pF @ 30 V |
