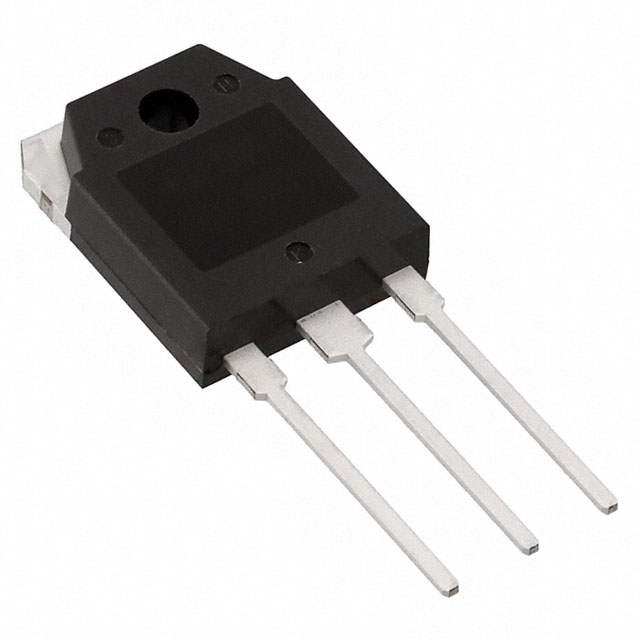

NDTL03N150CG
MOSFET N-CH 1500V 2.5A TO3PManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The onsemi NDTL03N150CG is an N-channel MOSFET offering a 1500V drain-to-source voltage. This device features a continuous drain current of 2.5A at 25°C with a maximum power dissipation of 2.5W (Ta) and 140W (Tc). The Rds On is specified at 10.5 Ohms maximum at 1.25A and 10V gate-source voltage. Key characteristics include a gate charge of 34 nC at 10V and an input capacitance of 650 pF at 30V. The MOSFET is housed in a TO-3P(L) through-hole package and operates at junction temperatures up to 150°C. This component is suitable for applications in high-voltage power conversion and switching, often found in industrial and power supply sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-3PL |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 10.5Ohm @ 1.25A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 140W (Tc) |
| Vgs(th) (Max) @ Id | - |
| Supplier Device Package | TO-3P(L) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 1500 V |
| Gate Charge (Qg) (Max) @ Vgs | 34 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 650 pF @ 30 V |
