NDF04N62ZG
MOSFET N-CH 620V 4.4A TO220FPManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The onsemi NDF04N62ZG is a 620V N-Channel Power MOSFET designed for high-voltage switching applications. This device features a continuous drain current rating of 4.4A (Tc) and a maximum power dissipation of 28W (Tc). With a low on-resistance of 2Ohm maximum at 2A and 10V Vgs, it offers efficient power conversion. Key parameters include a gate charge of 19 nC @ 10V and input capacitance of 535 pF @ 25V. The NDF04N62ZG is housed in a TO-220FP package suitable for through-hole mounting and operates across a wide temperature range of -55°C to 150°C. This component is utilized in industries such as industrial power supplies and power factor correction.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

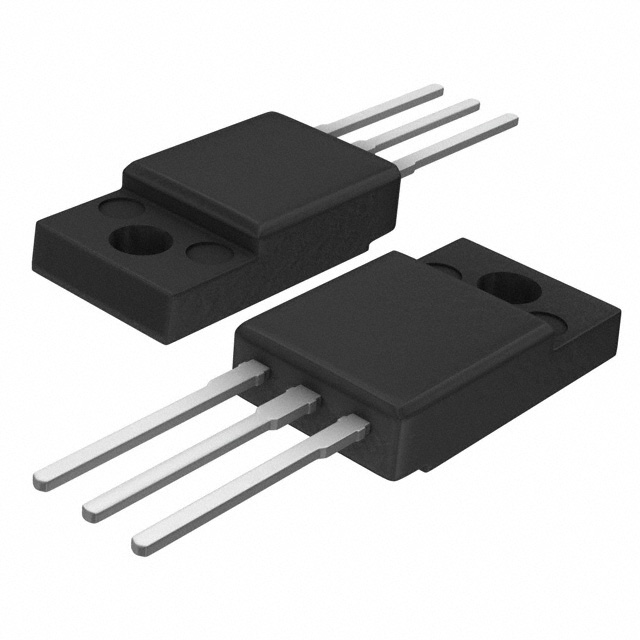

| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4.4A (Tc) |
| Rds On (Max) @ Id, Vgs | 2Ohm @ 2A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 28W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 50µA |
| Supplier Device Package | TO-220FP |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 620 V |
| Gate Charge (Qg) (Max) @ Vgs | 19 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 535 pF @ 25 V |
