MCH6431-TL-W
MOSFET N-CH 30V 5A SC88FL/MCPH6Manufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More

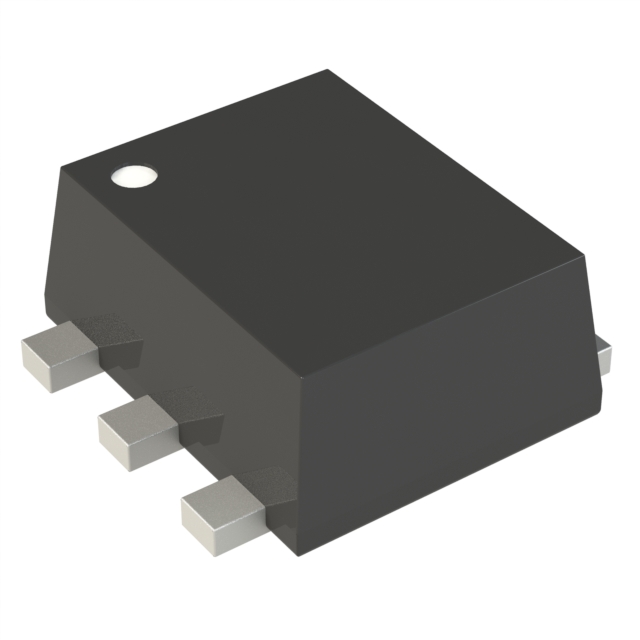

The onsemi MCH6431-TL-W is an N-Channel Power MOSFET designed for efficient switching applications. This component features a drain-source voltage (Vdss) of 30V and a continuous drain current (Id) of 5A at 25°C, with a maximum power dissipation of 1.5W (Ta). The Rds On is specified at 55mOhm maximum at 2.5A and 10V Vgs. It supports a gate-source voltage range of ±20V and a threshold voltage (Vgs(th)) of 2.6V at 1mA. Key parameters include a gate charge (Qg) of 5.6 nC at 10V and an input capacitance (Ciss) of 280 pF maximum at 10V. This device is housed in a compact SC-88FL/MCPH6 (6-TSSOP, SC-88, SOT-363) surface mount package and is supplied on tape and reel. The MCH6431-TL-W is suitable for use in various industries including automotive and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
| Rds On (Max) @ Id, Vgs | 55mOhm @ 2.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.5W (Ta) |
| Vgs(th) (Max) @ Id | 2.6V @ 1mA |
| Supplier Device Package | SC-88FL/MCPH6 |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 5.6 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 280 pF @ 10 V |
