MCH3377-TL-W
MOSFET P-CH 20V 3A 3MCPHManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More

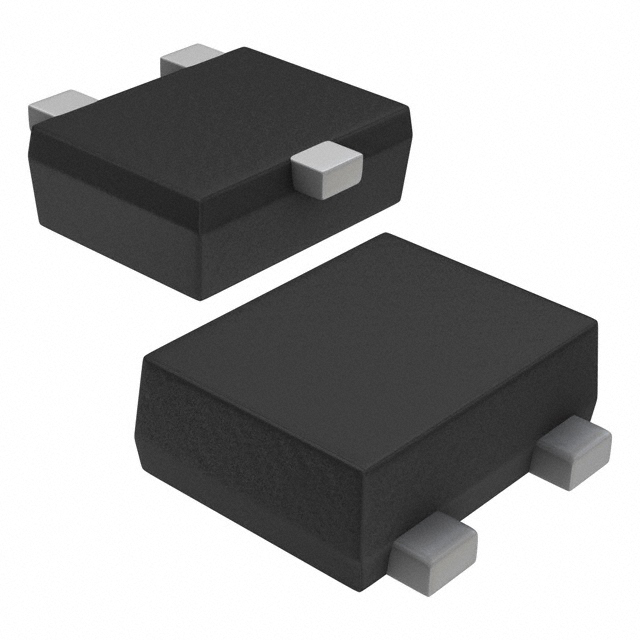

onsemi MCH3377-TL-W is a P-Channel MOSFET designed for surface mount applications. This component features a Drain to Source Voltage (Vdss) of 20 V and a continuous drain current (Id) of 3 A at 25°C. The Rds On is specified at a maximum of 83 mOhm at 1.5 A and 4.5 V Vgs. Key parameters include a Gate Charge (Qg) of 4.6 nC at 4.5 V and Input Capacitance (Ciss) of 375 pF at 10 V Vds. This device operates at an ambient temperature up to 150°C and has a power dissipation of 1W. The MCH3377-TL-W is supplied in a 3-MCPH package, equivalent to SC-70 or SOT-323, and is available on tape and reel. This MOSFET is suitable for use in automotive, industrial, and consumer electronics applications requiring efficient switching and power management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) |
| Rds On (Max) @ Id, Vgs | 83mOhm @ 1.5A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Vgs(th) (Max) @ Id | - |
| Supplier Device Package | 3-MCPH |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±10V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 4.6 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 375 pF @ 10 V |
