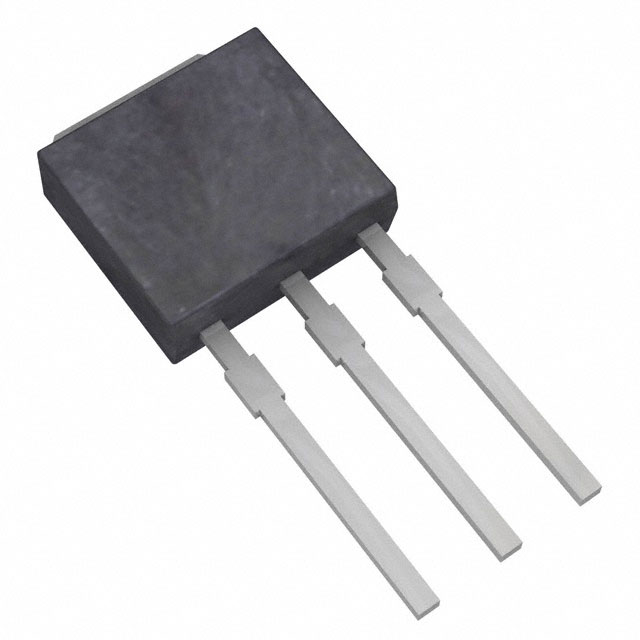

HUF76423D3
MOSFET N-CH 60V 20A IPAKManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
onsemi UltraFET™ N-Channel MOSFET, part number HUF76423D3, features a 60V drain-source voltage (Vdss) and a continuous drain current (Id) of 20A at 25°C (Tc). This through-hole component, packaged in an IPAK (TO-251-3 Short Leads, TO-251AA), offers a low on-resistance (Rds On) of 32mOhm at 20A and 10V Vgs. Key parameters include a maximum power dissipation of 85W (Tc), a gate charge (Qg) of 34 nC at 10V, and input capacitance (Ciss) of 1060 pF at 25V. The operating temperature range is -55°C to 175°C (TJ). This device is suitable for applications in power switching and industrial control.
Additional Information
Series: UltraFET™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Rds On (Max) @ Id, Vgs | 32mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 85W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | IPAK |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±16V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 34 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1060 pF @ 25 V |
