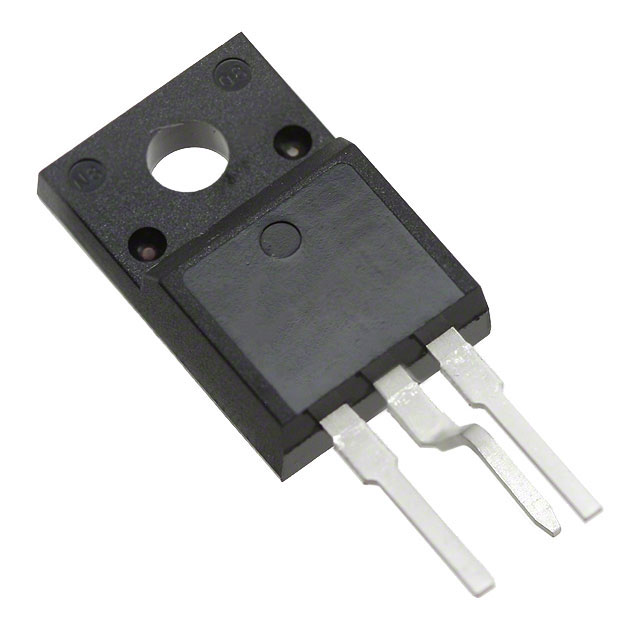

FDPF15N65YDTU
MOSFET N-CH 650V 15A TO220F-3Manufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The onsemi FDPF15N65YDTU is a UniFET™ series N-Channel Power MOSFET designed for high-voltage applications. This device features a maximum drain-source voltage (Vdss) of 650V and a continuous drain current (Id) of 15A at 25°C. The MOSFET exhibits a low on-resistance (Rds On) of 440mOhm at 7.5A and 10V gate-source voltage, with a typical gate charge (Qg) of 63nC at 10V. Its input capacitance (Ciss) is rated at 3095pF maximum at 25V. The FDPF15N65YDTU is housed in a TO-220F-3 (Y-Forming) through-hole package, capable of dissipating up to 38.5W at 25°C (Tc). Operating temperature range is from -55°C to 150°C (TJ). This component is commonly employed in power factor correction (PFC) and switch mode power supply (SMPS) circuits across various industrial and consumer electronics sectors.
Additional Information
Series: UniFET™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 Full Pack, Formed Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) |
| Rds On (Max) @ Id, Vgs | 440mOhm @ 7.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 38.5W (Tc) |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Supplier Device Package | TO-220F-3 (Y-Forming) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 63 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3095 pF @ 25 V |
