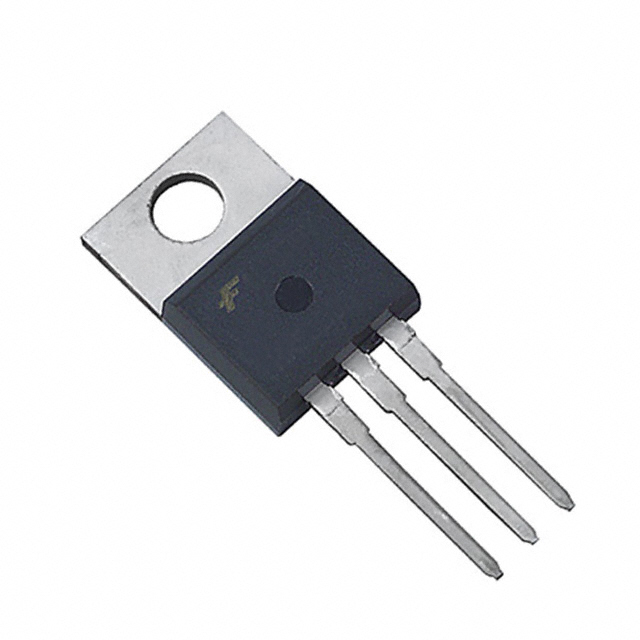

FDP047AN08A0-F102
MOSFET N-CH 75V 80A TO220-3Manufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
onsemi FDP047AN08A0-F102 is an N-Channel Power MOSFET designed for demanding applications. This through-hole component features a 75V drain-to-source voltage (Vdss) and a continuous drain current (Id) of 15A at 25°C (Tc), with a maximum power dissipation of 310W (Tc). The TO-220-3 package ensures robust thermal performance and ease of integration into existing designs. This MOSFET is suitable for use in power supply units, motor control, and automotive applications where efficient power switching is critical. The operating temperature range is -55°C to 175°C (TJ), supporting reliability in harsh environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Not For New DesignsPackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) |
| Rds On (Max) @ Id, Vgs | - |
| FET Feature | - |
| Power Dissipation (Max) | 310W (Tc) |
| Vgs(th) (Max) @ Id | - |
| Supplier Device Package | TO-220-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 75 V |
Request a Quote
