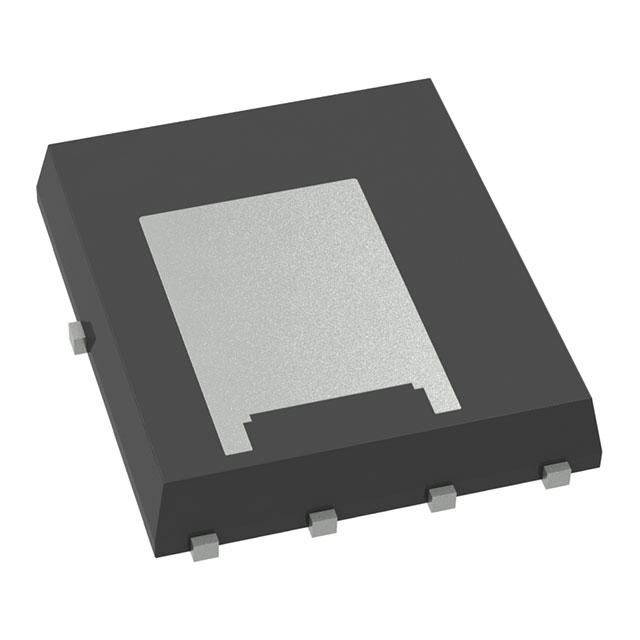

FDMS86300DC
MOSFET N-CH 80V 24A/76A DLCOOL56Manufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 80 V 24A (Ta), 76A (Tc) 3.2W (Ta), 125W (Tc) Surface Mount 8-PQFN (5x6)
Additional Information
Series: Dual Cool™, PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 24A (Ta), 76A (Tc) |
| Rds On (Max) @ Id, Vgs | 3.1mOhm @ 24A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3.2W (Ta), 125W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Supplier Device Package | 8-PQFN (5x6) |
| Drive Voltage (Max Rds On, Min Rds On) | 8V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 101 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 7005 pF @ 40 V |
