FDMS5362L-F085
MOSFET N-CH 60V 17.6A POWER56Manufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More

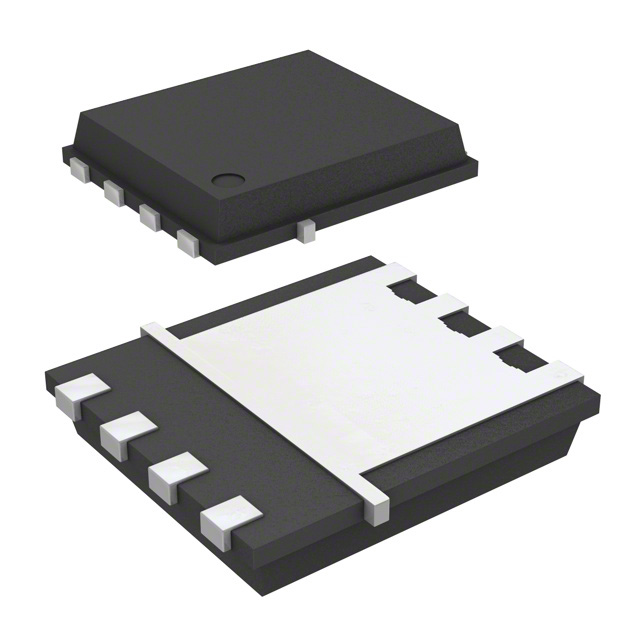

The onsemi FDMS5362L-F085 is an N-Channel Power MOSFET from the PowerTrench® series, designed for demanding applications. This device features a 60V drain-source breakdown voltage (Vdss) and supports a continuous drain current of 17.6A (Tc) at 25°C, with a maximum power dissipation of 41.7W (Tc). The MOSFET exhibits a low on-resistance of 33mOhm maximum at 17.6A and 10V Vgs. Key specifications include a gate charge (Qg) of 21 nC maximum at 10V Vgs and input capacitance (Ciss) of 878 pF maximum at 25V Vds. It operates over an extended temperature range of -55°C to 175°C (TJ). The FDMS5362L-F085 is supplied in an 8-PowerVDFN (Power56) surface mount package and is AEC-Q101 qualified, making it suitable for automotive applications.
Additional Information
Series: PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 17.6A (Tc) |
| Rds On (Max) @ Id, Vgs | 33mOhm @ 17.6A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 41.7W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | Power56 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 21 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 878 pF @ 25 V |
| Qualification | AEC-Q101 |
