FDMS5360L-F085
MOSFET N-CH 60V 60A POWER56Manufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The onsemi FDMS5360L-F085 is an N-Channel Power Trench MOSFET designed for demanding applications. This device features a 60V drain-source breakdown voltage and supports a continuous drain current of 60A at 25°C (Tc), with a maximum power dissipation of 150W (Tc). The low on-resistance of 8.5mOhm at 60A and 10V gate-source voltage, achieved with a 10V gate drive, minimizes conduction losses. Key parameters include a maximum gate charge of 72 nC at 10V and input capacitance of 3695 pF at 30V. The FDMS5360L-F085 is housed in an 8-PowerVDFN (Power56) package suitable for surface mounting and operates across a wide temperature range of -55°C to 175°C (TJ). Qualified to AEC-Q101 and carrying an Automotive grade, this MOSFET is well-suited for automotive power management systems and other high-performance power conversion circuits.
Additional Information
Series: PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

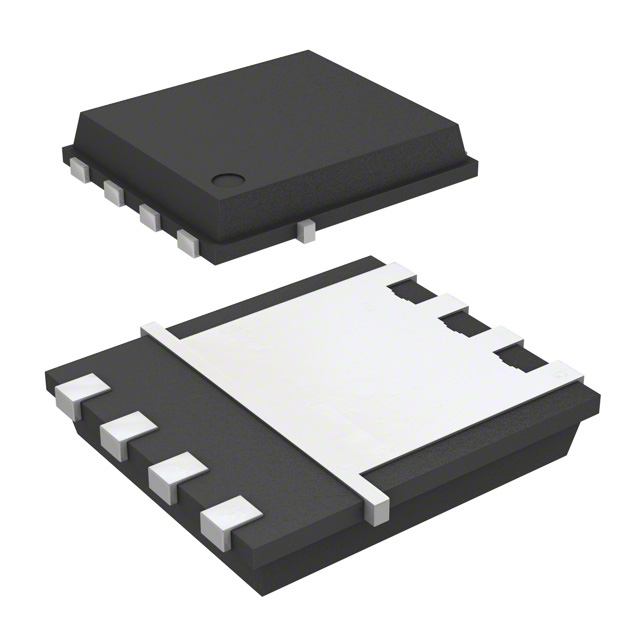

| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Rds On (Max) @ Id, Vgs | 8.5mOhm @ 60A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 150W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | Power56 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 72 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3695 pF @ 30 V |
| Qualification | AEC-Q101 |
