FDMS4D0N12C
MOSFET N-CH 120V 18.5A/114A 8QFNManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More

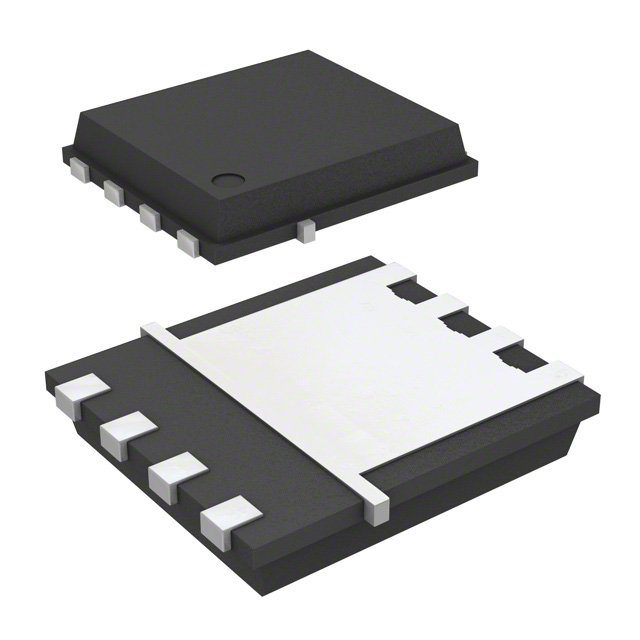

N-Channel 120 V 18.5A (Ta), 114A (Tc) 2.7W (Ta), 106W (Tc) Surface Mount 8-PQFN (5x6)
Additional Information
Series: PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 18.5A (Ta), 114A (Tc) |
| Rds On (Max) @ Id, Vgs | 4mOhm @ 67A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.7W (Ta), 106W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 370A |
| Supplier Device Package | 8-PQFN (5x6) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 120 V |
| Gate Charge (Qg) (Max) @ Vgs | 82 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6460 pF @ 60 V |
