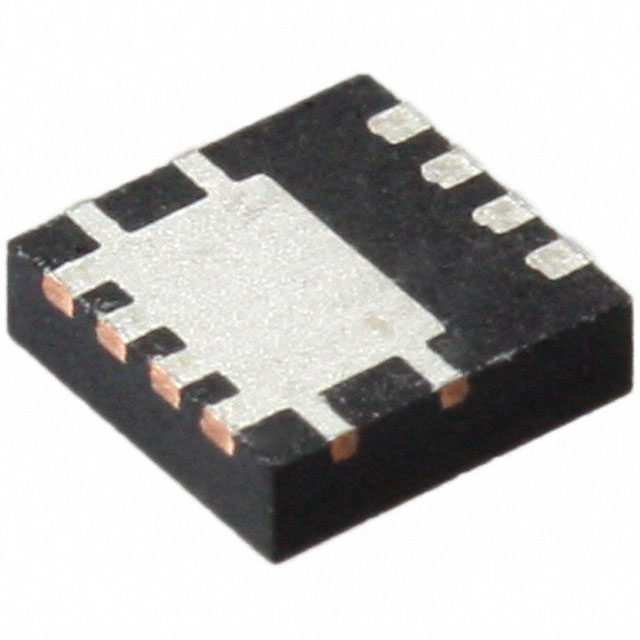

FDMS3008SDC
POWER FIELD-EFFECT TRANSISTOR, 2Manufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 30 V 29A (Ta) 3.3W (Ta), 78W (Tc) Surface Mount Dual Cool™56
Additional Information
Series: Dual Cool™, PowerTrench®, SyncFET™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 29A (Ta) |
| Rds On (Max) @ Id, Vgs | 2.6mOhm @ 28A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3.3W (Ta), 78W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 1mA |
| Supplier Device Package | Dual Cool™56 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 64 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4520 pF @ 15 V |
