FDME430NT
MOSFET N-CH 30V 6A MICROFET1.6Manufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More

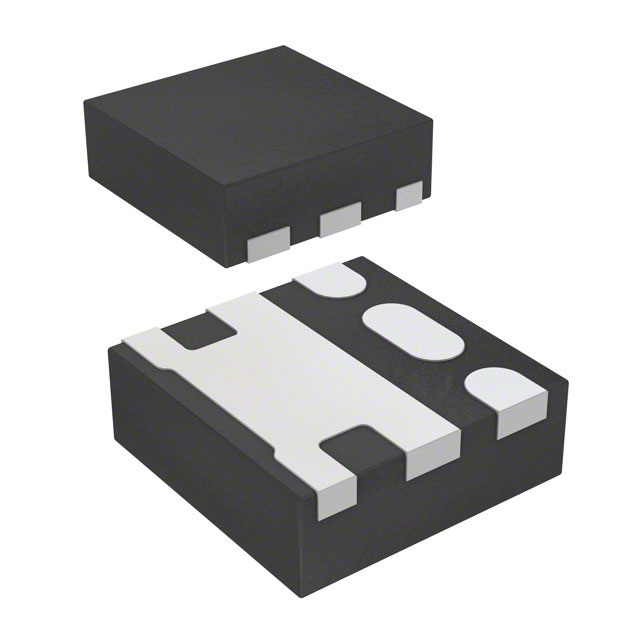

N-Channel 30 V 6A (Ta) 2.1W (Ta) Surface Mount MicroFet 1.6x1.6 Thin
Additional Information
Series: PowerTrench®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-PowerUFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta) |
| Rds On (Max) @ Id, Vgs | 40mOhm @ 6A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 2.1W (Ta) |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Supplier Device Package | MicroFet 1.6x1.6 Thin |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 760 pF @ 15 V |
Request a Quote
