FDMC8026S
MOSFET N-CH 30V 19A/21A 8MLPManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
onsemi FDMC8026S is an N-Channel Power MOSFET featuring onsemi's PowerTrench® and SyncFET™ technologies. This component offers a 30V drain-to-source voltage (Vdss) and a continuous drain current capability of 19A at ambient temperature and 21A at case temperature. With a low on-resistance of 4.4mOhm maximum at 19A and 10V gate-source voltage, it achieves a maximum power dissipation of 2.4W (Ta) and 36W (Tc). The device is packaged in an 8-MLP (3.3x3.3) footprint, suitable for surface mounting, and operates within a temperature range of -55°C to 150°C (TJ). Key electrical characteristics include a gate charge (Qg) of 52 nC maximum at 10V and an input capacitance (Ciss) of 3165 pF maximum at 15V. This MOSFET is utilized in power management applications across various industries including consumer electronics and industrial automation.
Additional Information
Series: PowerTrench®, SyncFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 19A (Ta), 21A (Tc) |
| Rds On (Max) @ Id, Vgs | 4.4mOhm @ 19A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.4W (Ta), 36W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 1mA |
| Supplier Device Package | 8-MLP (3.3x3.3) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 52 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3165 pF @ 15 V |
Request a Quote
Clients Also Buy

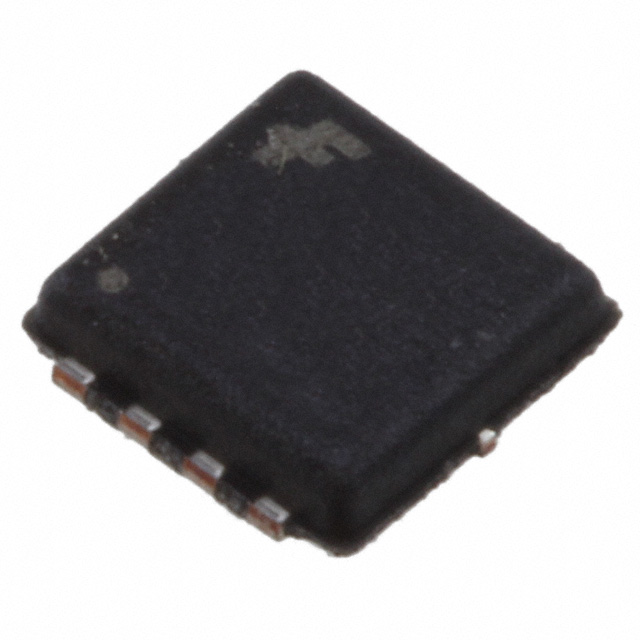

FDMC7672S
MOSFET N-CH 30V 14.8A/18A 8MLP

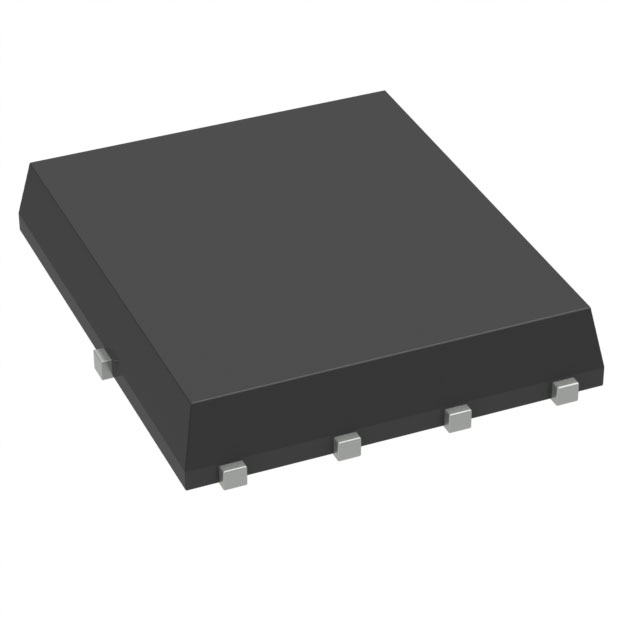

FDMS0312AS
