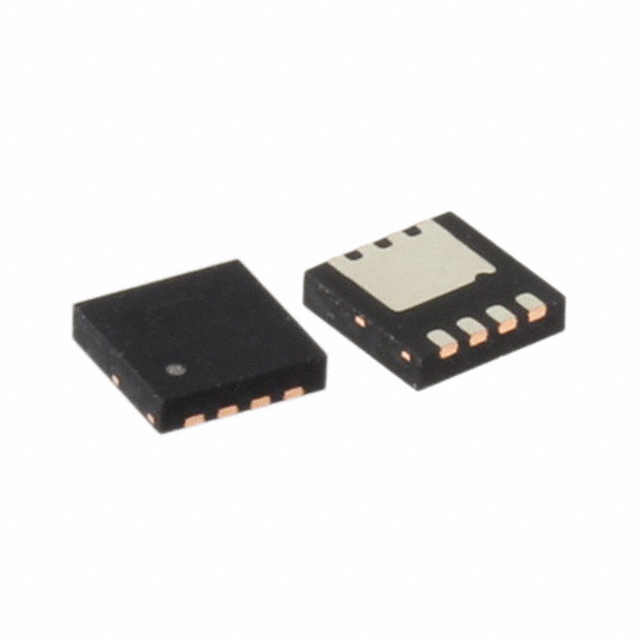

FDMC7672S-F126
MOSFET N-CH 30V 14.8A 8MLPManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
onsemi FDMC7672S-F126 is a PowerTrench®, SyncFET™ N-Channel MOSFET designed for high-efficiency power conversion applications. This 30V device features a low on-resistance of 6mOhm at 10V Vgs and 14.8A Id, contributing to reduced conduction losses. With a continuous drain current of 14.8A at 25°C ambient and a maximum continuous drain current capability of 36W at 25°C case temperature, it offers robust performance. The 8-MLP (3.3x3.3) package provides a compact footprint suitable for space-constrained designs. Key electrical parameters include a gate charge of 42nC at 10V Vgs and an input capacitance of 2520pF at 15V Vds. Operating across a temperature range of -55°C to 150°C, this MOSFET is utilized in various industries including computing, consumer electronics, and telecommunications.
Additional Information
Series: PowerTrench®, SyncFET™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 14.8A (Ta) |
| Rds On (Max) @ Id, Vgs | 6mOhm @ 14.8A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.3W (Ta), 36W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 1mA |
| Supplier Device Package | 8-MLP (3.3x3.3) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 42 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2520 pF @ 15 V |
