FDMC612PZ
MOSFET P-CH 20V 14A 8MLPManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
onsemi FDMC612PZ, a P-Channel PowerTrench® MOSFET, offers a 20V drain-to-source voltage and a continuous drain current (Id) of 14A at 25°C. This device features a low Rds(on) of 8.4mOhm at 14A and 4.5V Vgs. The surface mount 8-MLP (3.3x3.3) package provides a compact solution with significant power handling capabilities, rated at 2.3W (Ta) and 26W (Tc). Key electrical parameters include a maximum gate charge (Qg) of 74 nC at 4.5V and input capacitance (Ciss) of 7995 pF at 10V. Drive voltages range from 2.5V to 4.5V, with a maximum gate-source voltage (Vgs) of ±12V. The operating temperature range is -55°C to 150°C (TJ). This MOSFET is suitable for applications in power management and industrial automation.
Additional Information
Series: PowerTrench®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

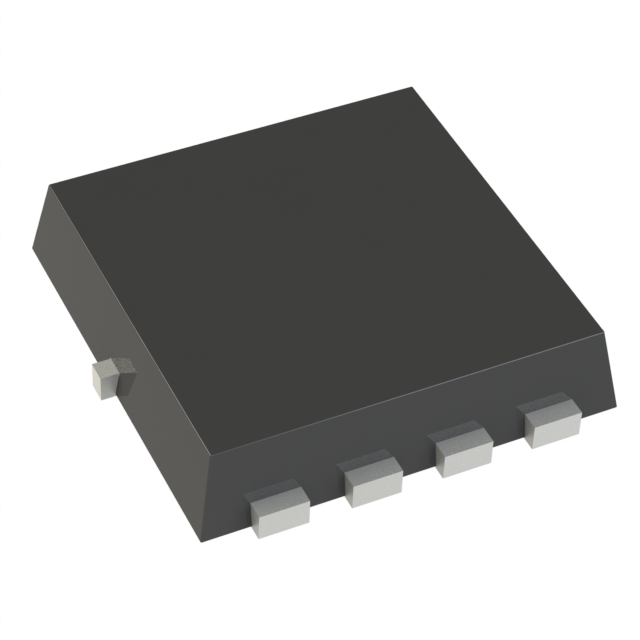

| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 14A (Ta) |
| Rds On (Max) @ Id, Vgs | 8.4mOhm @ 14A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 2.3W (Ta), 26W (Tc) |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Supplier Device Package | 8-MLP (3.3x3.3) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 74 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 7995 pF @ 10 V |
