FDMA037N08LC
MOSFET N-CH 80V 6A 6WDFNManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More

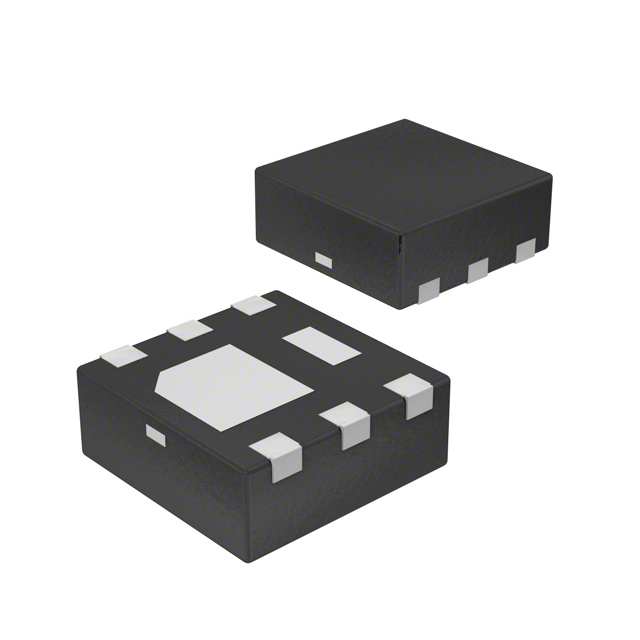

The onsemi FDMA037N08LC is an N-Channel PowerTrench® MOSFET designed for efficient power management applications. This component features a Drain-Source Voltage (Vdss) of 80V and a continuous drain current (Id) of 6A at 25°C (Tc). With a maximum Rds(on) of 36.5mOhm at 4A and 10V, it offers low conduction losses. The device is housed in a compact 6-WDFN (2x2) package with an exposed pad, suitable for surface mounting. Key electrical characteristics include a gate charge (Qg) of 9 nC maximum at 10V and input capacitance (Ciss) of 595 pF maximum at 40V. The operating temperature range is -55°C to 150°C (TJ), and it supports drive voltages from 4.5V to 10V. Power dissipation is rated at 2.4W (Ta). This MOSFET finds utility in various industries, including automotive and industrial power conversion.
Additional Information
Series: PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) |
| Rds On (Max) @ Id, Vgs | 36.5mOhm @ 4A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.4W (Ta) |
| Vgs(th) (Max) @ Id | 2.5V @ 20µA |
| Supplier Device Package | 6-WDFN (2x2) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 595 pF @ 40 V |
