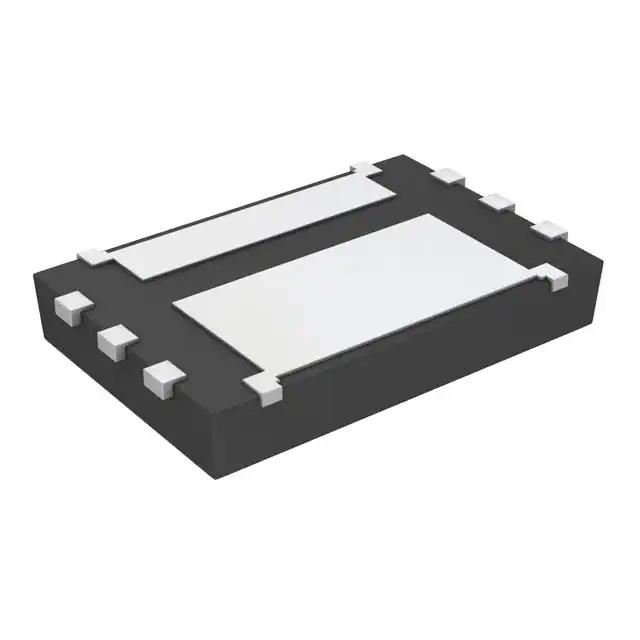

FDMA008P20LZ
SINGLE P-CHANNEL POWERTRENCH MOSManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 20 V 12A (Ta) 2.4W (Ta) Surface Mount 6-PQFN (2x2)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 6-PowerWDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta) |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 2.5A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 2.4W (Ta) |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA |
| Supplier Device Package | 6-PQFN (2x2) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 39 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4383 pF @ 10 V |
Request a Quote
