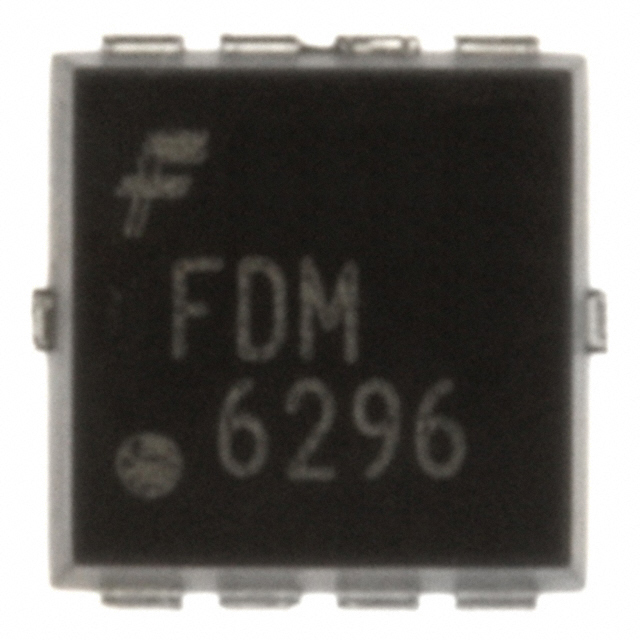

FDM6296
MOSFET N-CH 30V 11.5A 8POWER33Manufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The onsemi FDM6296 is an N-Channel PowerTrench® MOSFET designed for efficient power management. This component features a Drain-Source Voltage (Vdss) of 30V and a continuous drain current (Id) of 11.5A at 25°C. With a low on-resistance (Rds On) of 10.5mOhm at 11.5A and 10V Vgs, it minimizes conduction losses. The device offers a maximum power dissipation of 2.1W (Ta) and is packaged in an 8-Power33 (3x3) surface-mount configuration, specifically the 8-PowerVDFN. Key electrical characteristics include a gate charge (Qg) of 17 nC (max) at 5V Vgs and input capacitance (Ciss) of 2005 pF (max) at 15V Vds. It operates across a temperature range of -55°C to 150°C (TJ). This MOSFET is suitable for applications in automotive and industrial power conversion systems.
Additional Information
Series: PowerTrench®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 11.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 10.5mOhm @ 11.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.1W (Ta) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | 8-Power33 (3x3) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2005 pF @ 15 V |
