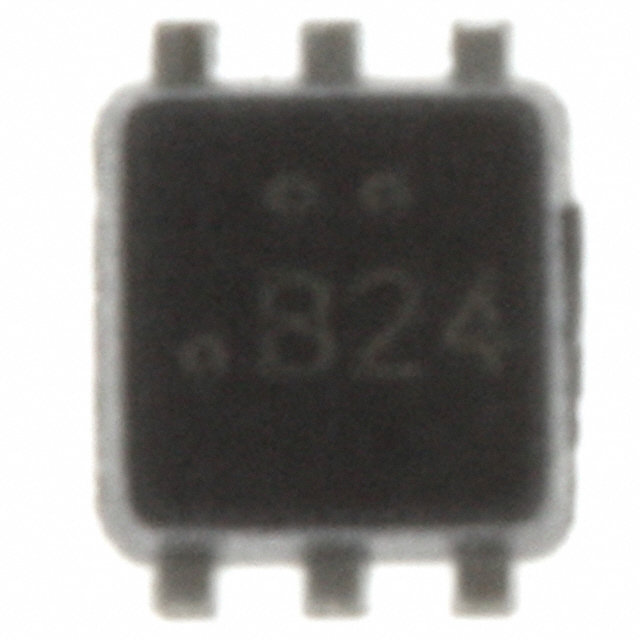

FDJ128N
MOSFET N-CH 20V 5.5A SC75-6 FLMPManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
onsemi FDJ128N, an N-Channel PowerTrench® MOSFET, offers a 20V drain-source voltage and a continuous drain current of 5.5A (Ta) at 25°C. This component features a maximum on-resistance of 35mOhm at 5.5A and 4.5V Vgs, with a typical gate charge of 8 nC at 5V. The SC75-6 FLMP package provides a compact footprint suitable for surface mounting applications. With a maximum power dissipation of 1.6W (Ta) and an operating temperature range of -55°C to 150°C, the FDJ128N is designed for demanding applications in automotive and industrial sectors. Its low on-resistance and efficient switching characteristics, driven by a 2.5V to 4.5V gate drive, make it a reliable choice for power management solutions.
Additional Information
Series: PowerTrench®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-75-6 FLMP |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 5.5A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 1.6W (Ta) |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Supplier Device Package | SC75-6 FLMP |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 8 nC @ 5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 543 pF @ 10 V |
