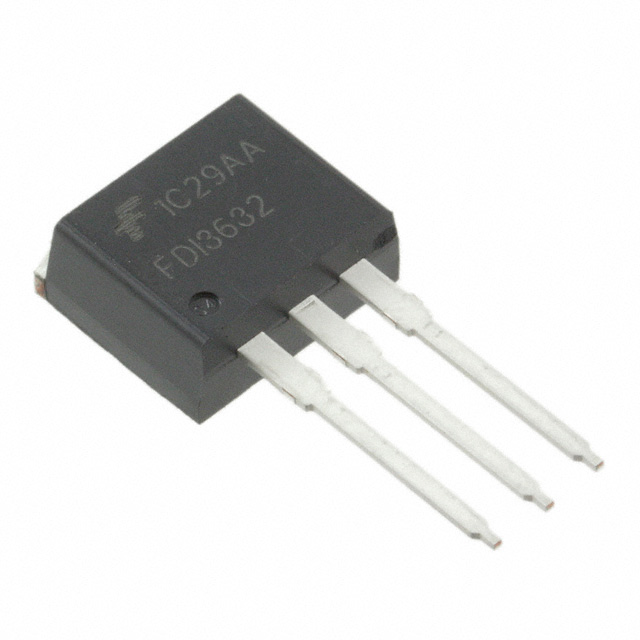

FDI3632
MOSFET N-CH 100V 12A/80A I2PAKManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
onsemi FDI3632 is a PowerTrench® series N-Channel MOSFET with a Drain-Source Voltage (Vdss) of 100V. This component offers a continuous drain current of 12A at ambient temperature (Ta) and 80A at case temperature (Tc), with a maximum power dissipation of 310W (Tc). Featuring a low Rds On of 9mOhm at 80A and 10V, this MOSFET is suitable for applications requiring efficient power switching. The device is delivered in a TO-262 (I2PAK) through-hole package, facilitating robust PCB mounting. Key electrical parameters include a gate charge (Qg) of 110 nC (max) at 10V and input capacitance (Ciss) of 6000 pF (max) at 25V. The operating temperature range is -55°C to 175°C (TJ). This MOSFET is commonly utilized in power supply units, motor control, and industrial power applications.
Additional Information
Series: PowerTrench®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 80A (Tc) |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 80A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 310W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | TO-262 (I2PAK) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 110 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6000 pF @ 25 V |
