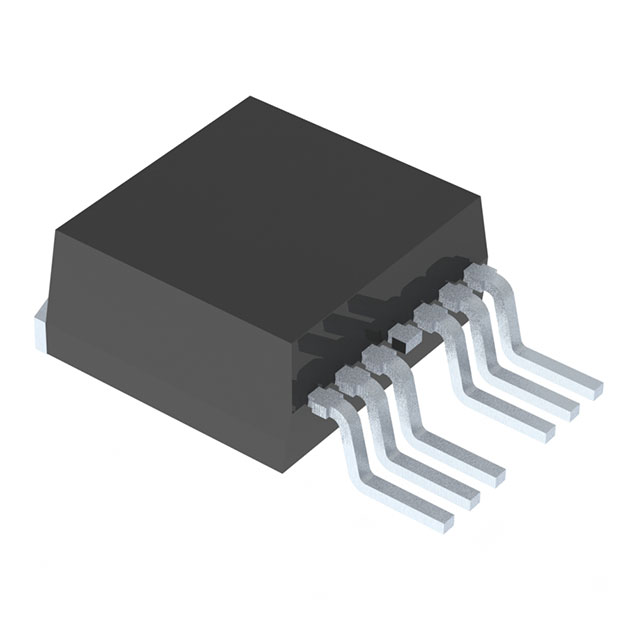

FDB0300N1007L
MOSFET N-CH 100V 200A TO263-7Manufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The onsemi FDB0300N1007L is a PowerTrench® series N-Channel MOSFET designed for demanding power applications. This TO-263-7 packaged component features a drain-to-source voltage (Vdss) of 100 V and a continuous drain current (Id) of 200 A at 25°C (Tc). Its low on-resistance (Rds On) is 3 mOhm maximum at 26 A and 10 V gate-source voltage. The device offers a maximum power dissipation of 3.8 W (Ta) and 250 W (Tc). Key characteristics include a gate charge (Qg) of 113 nC maximum at 10 V and input capacitance (Ciss) of 8295 pF maximum at 50 V. It supports drive voltages from 6 V to 10 V and has a maximum gate-source voltage (Vgs) of ±20 V. The MOSFET is suitable for surface mounting and operates within a temperature range of -55°C to 175°C (TJ). This component finds application in sectors such as automotive and industrial power management. It is supplied in Tape & Reel packaging.
Additional Information
Series: PowerTrench®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-7, D2PAK (6 Leads + Tab) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 200A (Tc) |
| Rds On (Max) @ Id, Vgs | 3mOhm @ 26A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3.8W (Ta), 250W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | TO-263-7 |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 113 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 8295 pF @ 50 V |
