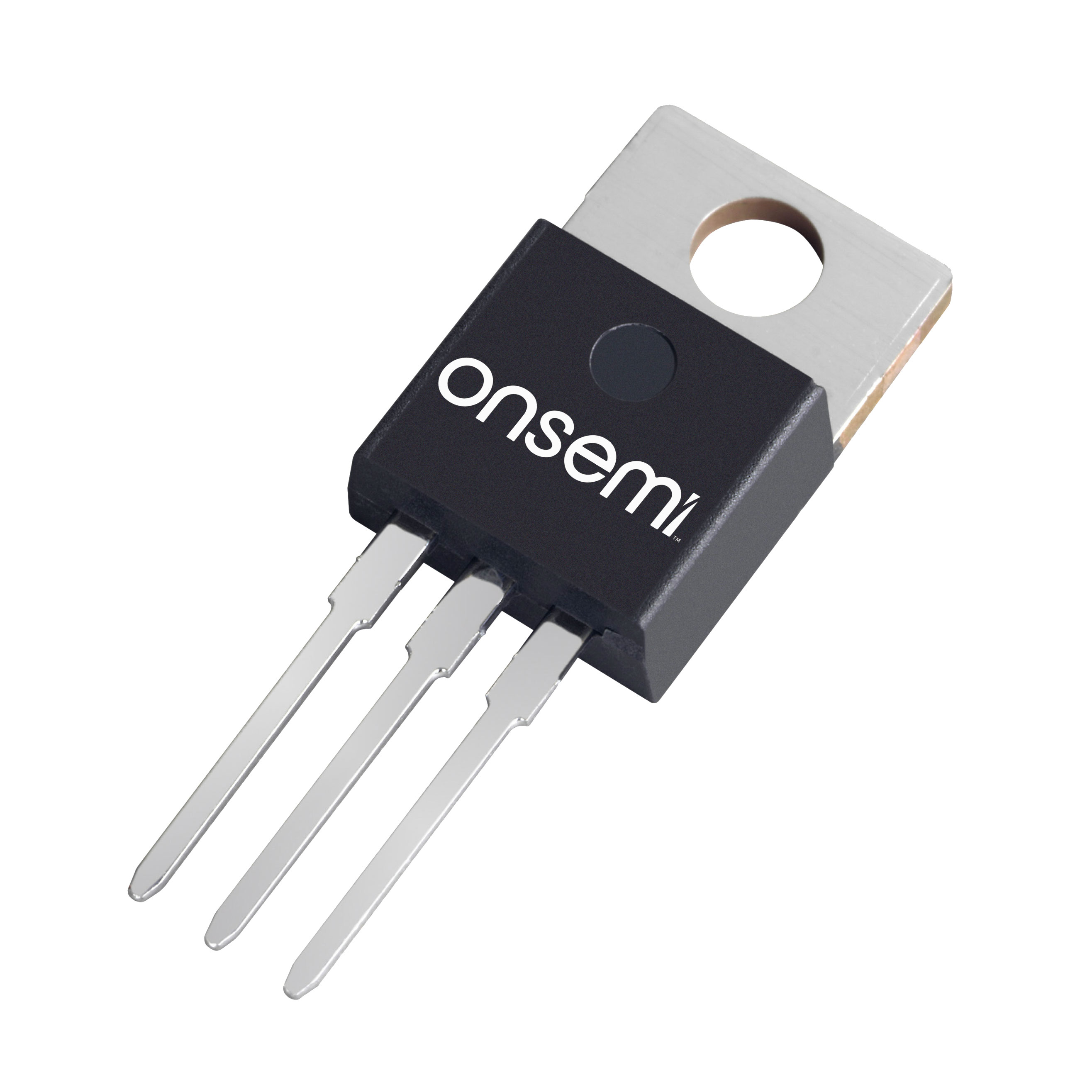

FCPF165N65S3L1-F154
SF3 650V 165MOHM E TO220FManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 650 V 19A (Tj) 35W (Tc) Through Hole TO-220F-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 19A (Tj) |
| Rds On (Max) @ Id, Vgs | 165mOhm @ 9.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 35W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 410µA |
| Supplier Device Package | TO-220F-3 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 35 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1415 pF @ 400 V |
| Qualification | - |
