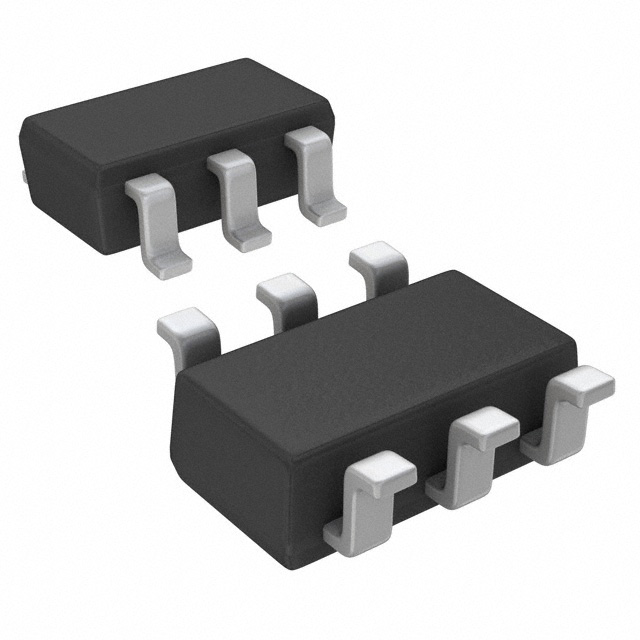

CPH6341-M-TL-W
MOSFET P-CH 30V 5A CPH6Manufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 30 V 5A (Ta) 1.6W (Ta) Surface Mount 6-CPH
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
| Rds On (Max) @ Id, Vgs | 59mOhm @ 3A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.6W (Ta) |
| Vgs(th) (Max) @ Id | 2.6V @ 1mA |
| Supplier Device Package | 6-CPH |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 430 pF @ 10 V |
