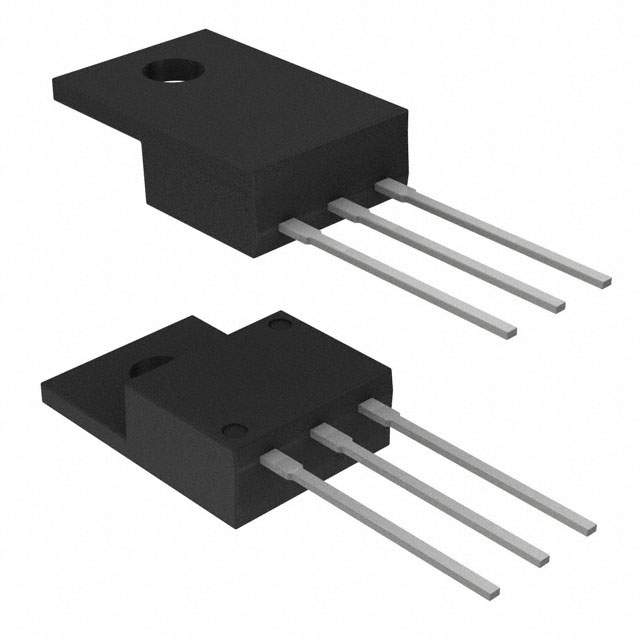

BXL4001
MOSFET N-CH 75V 85A TO220Manufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The onsemi BXL4001 is an N-Channel Power MOSFET designed for demanding applications. It features a Drain-to-Source Voltage (Vdss) of 75V and a continuous Drain Current (Id) of 85A at 25°C ambient temperature. The Rds(on) is specified at a maximum of 12.4mOhm at 43A and 10V gate drive. Key parameters include a gate charge (Qg) of 115 nC at 10V and input capacitance (Ciss) of 6700 pF at 20V. This device offers a maximum power dissipation of 1.75W (ambient) and 75W (case). It is housed in a TO-220-3 package with a through-hole mounting type. Applications include power switching and motor control systems. The operating junction temperature range is up to 150°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 85A (Ta) |
| Rds On (Max) @ Id, Vgs | 12.4mOhm @ 43A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.75W (Ta), 75W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Supplier Device Package | TO-220(LS) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 75 V |
| Gate Charge (Qg) (Max) @ Vgs | 115 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6700 pF @ 20 V |
