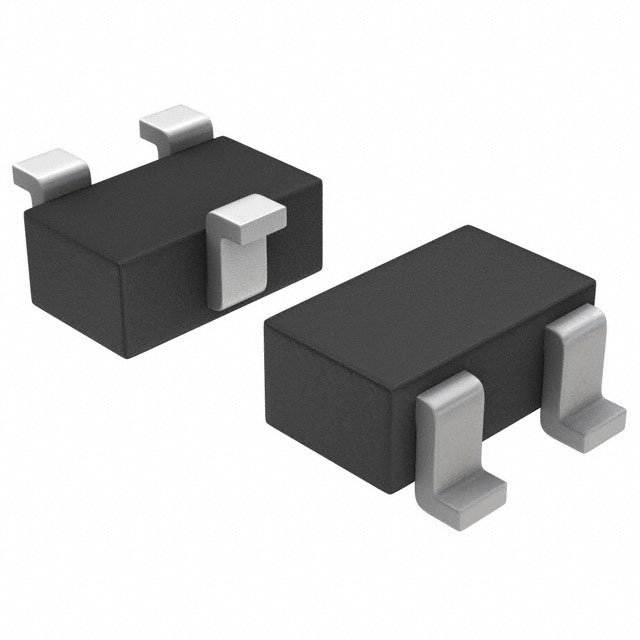

BSS138W
MOSFET N-CH 50V 210MA SC70Manufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 50 V 210mA (Ta) 340mW (Ta) Surface Mount SOT-323
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 210mA (Ta) |
| Rds On (Max) @ Id, Vgs | 3.5Ohm @ 220mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 340mW (Ta) |
| Vgs(th) (Max) @ Id | 1.5V @ 1mA |
| Supplier Device Package | SOT-323 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 50 V |
| Gate Charge (Qg) (Max) @ Vgs | 1.1 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 38 pF @ 25 V |
