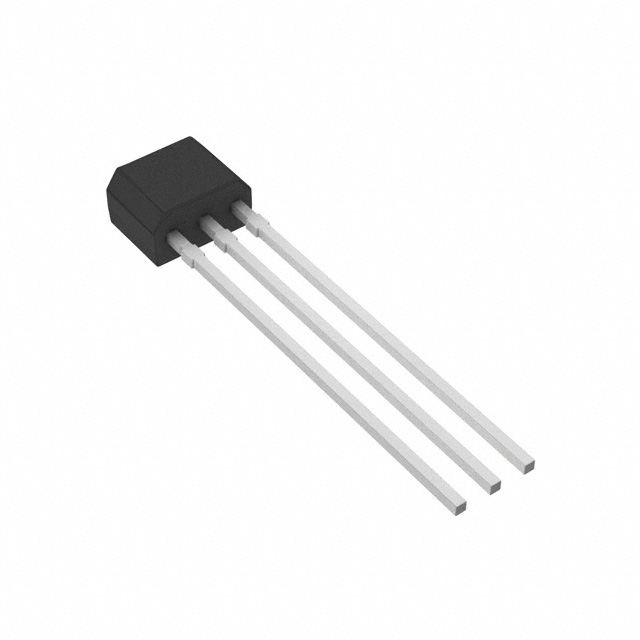

5LN01SP-AC
MOSFET N-CH 50V 100MA 3SPAManufacturer: onsemi
Categories: Single FETs, MOSFETs
Quality Control: Learn More
onsemi 5LN01SP-AC is an N-Channel MOSFET designed for applications requiring efficient switching. This component features a Drain-to-Source Voltage (Vdss) of 50 V and a continuous Drain Current (Id) of 100 mA at 25°C. The Rds On is specified at a maximum of 7.8 Ohms at 50 mA, 4 V. Key parameters include a Gate Charge (Qg) of 1.57 nC maximum at 10 V and Input Capacitance (Ciss) of 6.6 pF maximum at 10 V. The device operates with a Gate-Source Voltage (Vgs) range of ±10 V and a threshold voltage (Vgs(th)) of 1.3 V maximum at 100 µA. Power dissipation is rated at 250 mW (Ta) with a maximum junction temperature of 150°C. It is supplied in a 3-SPA package, specifically SC-72, and is available on tape and reel. This MOSFET is suitable for use in various industrial and consumer electronics applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-72 |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
| Rds On (Max) @ Id, Vgs | 7.8Ohm @ 50mA, 4V |
| FET Feature | - |
| Power Dissipation (Max) | 250mW (Ta) |
| Vgs(th) (Max) @ Id | 1.3V @ 100µA |
| Supplier Device Package | 3-SPA |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4V |
| Vgs (Max) | ±10V |
| Drain to Source Voltage (Vdss) | 50 V |
| Gate Charge (Qg) (Max) @ Vgs | 1.57 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6.6 pF @ 10 V |
